Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 168

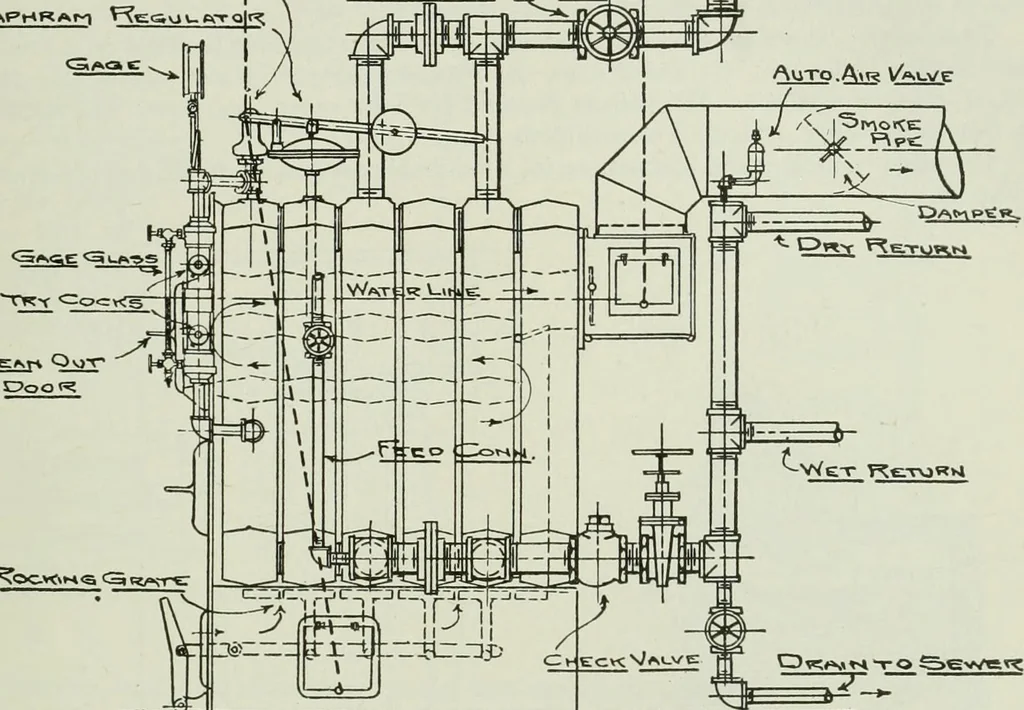

M HEATING BOILERS AND HOT-WATER HEATERS 157 load. In this connection the comparison of cast-iron and steel boilers just given should be re-ferred to in making a selection. The kind of fuel must be carefully considered, as, for example, a soft coal depositing largeamounts of soot will render the… … Fig. 20. Trimmings and Connections for Sectional Steam Heating BoilerConnect each steam outlet of boiler to a common header as shown. Header to be same size as outlets. Thereturns may be connected to a common return header as shown or when there ia only one return inlet on eachside run branch to…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
