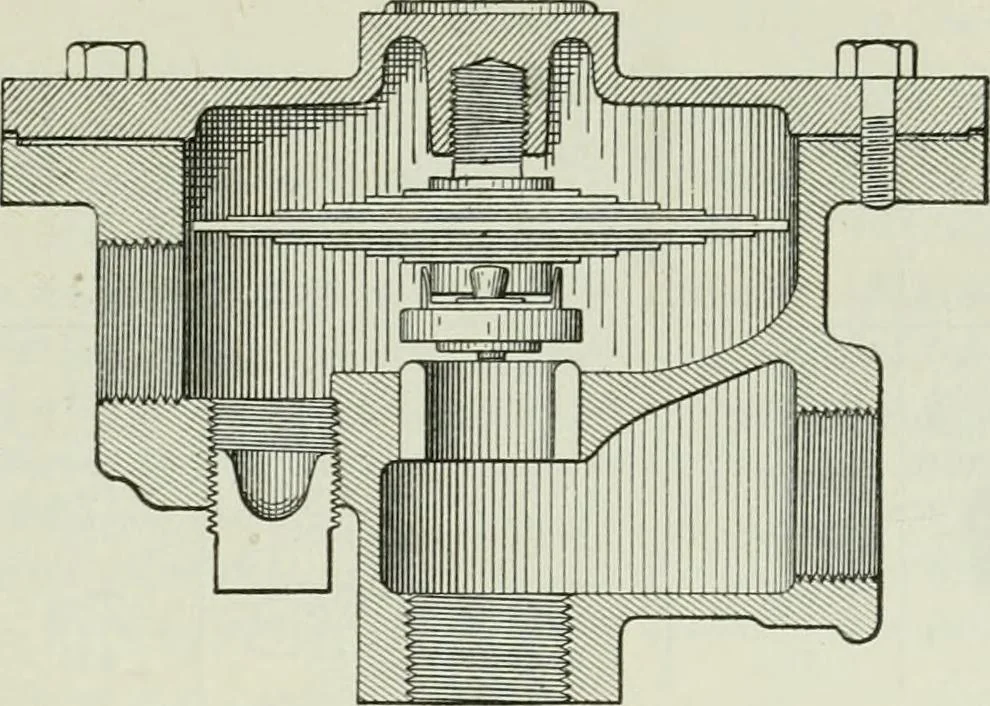

less. For typical applications of Dunham traps to various conditions of service, see details onpages 226-a and -b. Monash-Younker Radiator Return Valves. The Monash-Younker Co. manufactures a floattrap known as a Radifier (Figs. 47 and 48) for use on vacuum heating sjstems. The sectionalview .shows… … Fig. 46. DuNH.\M Bl.\st Tr.\p. pump is pulling on the system sufficiently to overcome the small head existing in the floatchamber. Whenever an accumulation of water occurs sufficient to flood the float chamber, thefloat is raised from its seat and the water is discharged directly to the return.
