Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 555

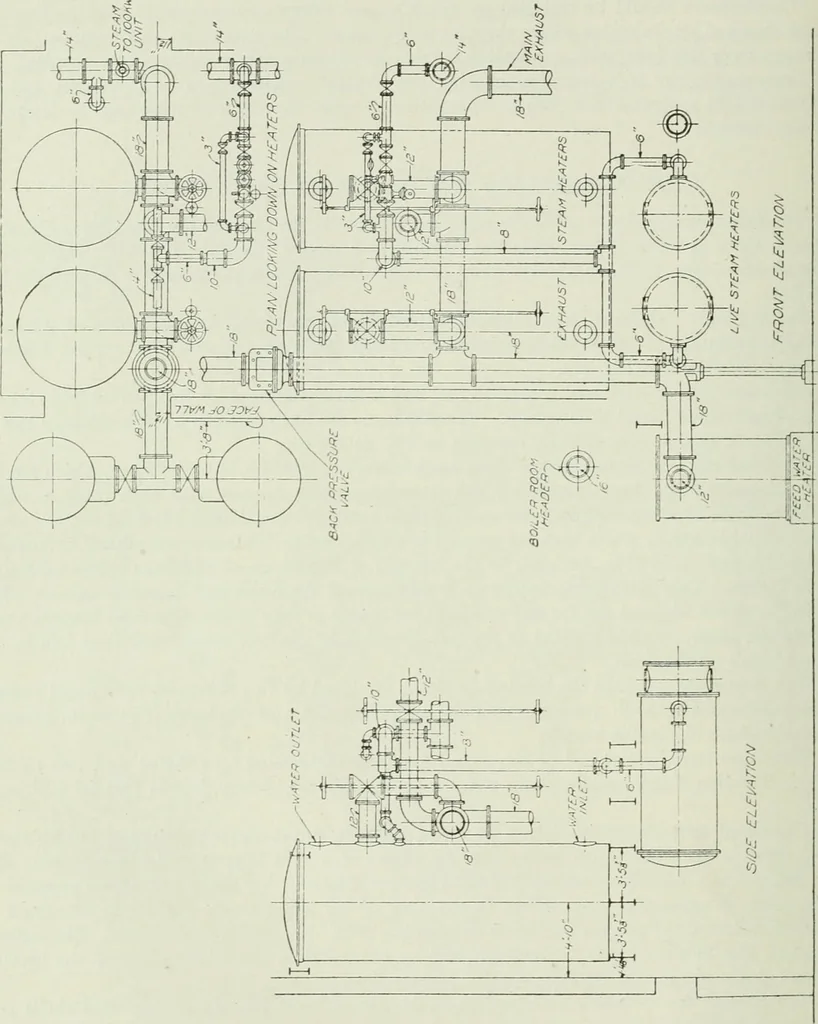

, and weighs36,500 lb. These heaters are set vertically, with steam connections as shown in Fig. 28. In front of these are located the two high-pressure converters, which are horizontal type,each containing 270 brass tubes, lYo in. outside diameter, having one tube head fixed and theother floating.… … Fig. 28. Steam Coxxectioxs of the Hot-Water Heaters.(Practical Engineer.) CENTRAL STATION OR DISTRICT HEATING 529 i8 1500 gal. per min., heating from 180 deg. up to 210 deg., using steam at 40-lb. pressure, this steambeing reduced from the boiler pressure of 150 lb. by means of a Keiley reducing…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
