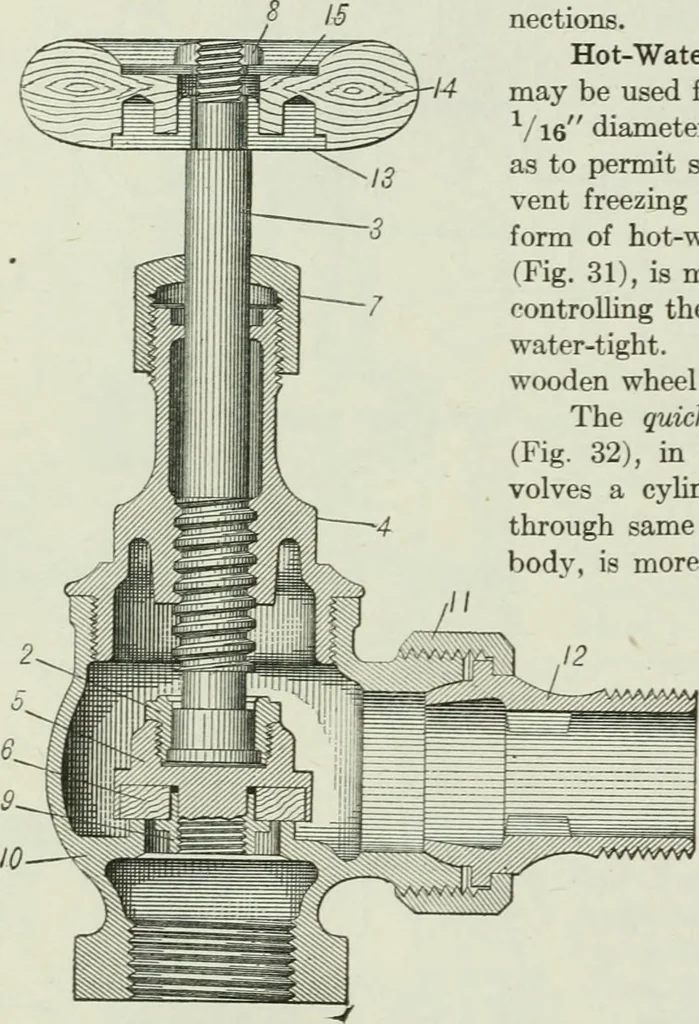

f hot-water radiator valve, of the butterfly type(Fig. 31), is manufactured and serves the pxupose ofcontrolling the flow, although it does not close perfectlywater-tight. The foot lever may be omitted and awooden wheel substituted for same. The quick-opening (Q.-O.) hot-water radiator valve(Fig.… … Fig. 29. Ste.\m Radiator Valve—Angle Pattern {Jenkins Bros.). Description of Parts. 6. Disc 11. Union Nut 7. Waste Nut 12. Union Nipple 8. Wheel Nut 13. Bottom Plate 9. Disc Nut 14. Wood Wheel 1. Wheel 2. Lock Nut 3. Spindle 4. Bonnet 5. Disc Holder
