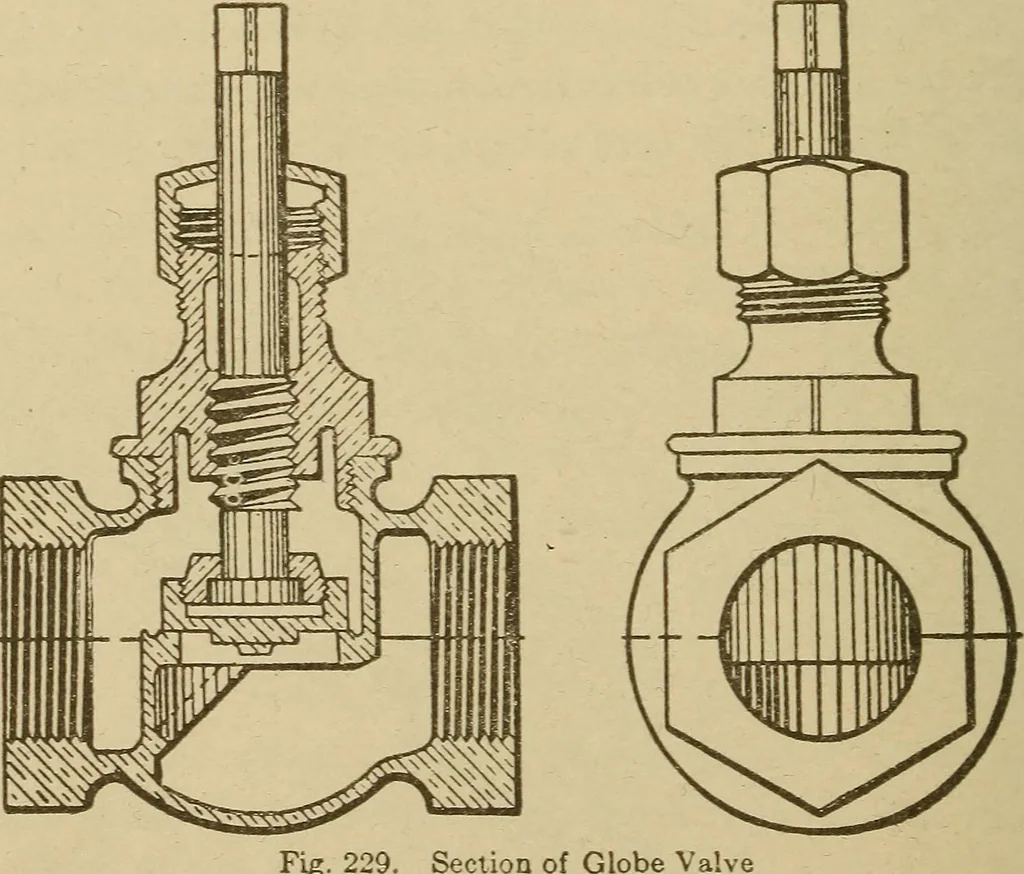

rts are required in large numbers. The present-day practice ofmolding patterns for the smaller sizes of pipe fittings is to eitherhave a number of similar patterns gated, Fig. 228, or resort toplate molding and stripping-plate molding machines. Some present-day methods of machine-molding pipe… … Fig. 229. Section of Globe Valvi side may be very simple, the inside is intricate and requires con-siderable practice and skill to so construct the core boxes that thecore can be withdrawn from them, and at the same time give uni-form thickness and strength to all parts of the shell and to…
