Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 158

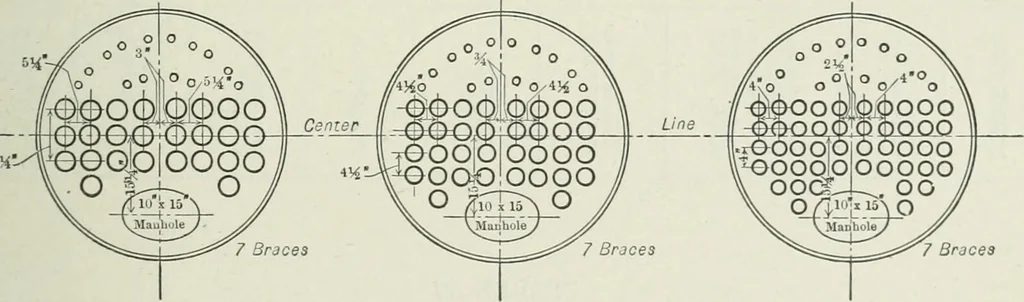

10 Bracea Boiler 48in Diameter26 Tubes 4Dia. Boiler 48in Diameter34 Tubes 3i Dia Boiler 48in Diameter46 Tubes 3Dia. … 7 Bracea Fig. 41. Typical Layout of Boiler Tubes for R. T. Boilers. 140 POWER PLANTS AND REFRIGERATION Number of rivets in single shear in a unit of length of joint = 1.Number of rivets in double shear in a unit of length of joint = 4. A = 6.5 X 0.375 X 55,000 = 134,062. B = (6.5 - 0.8125) 0.375 X…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
