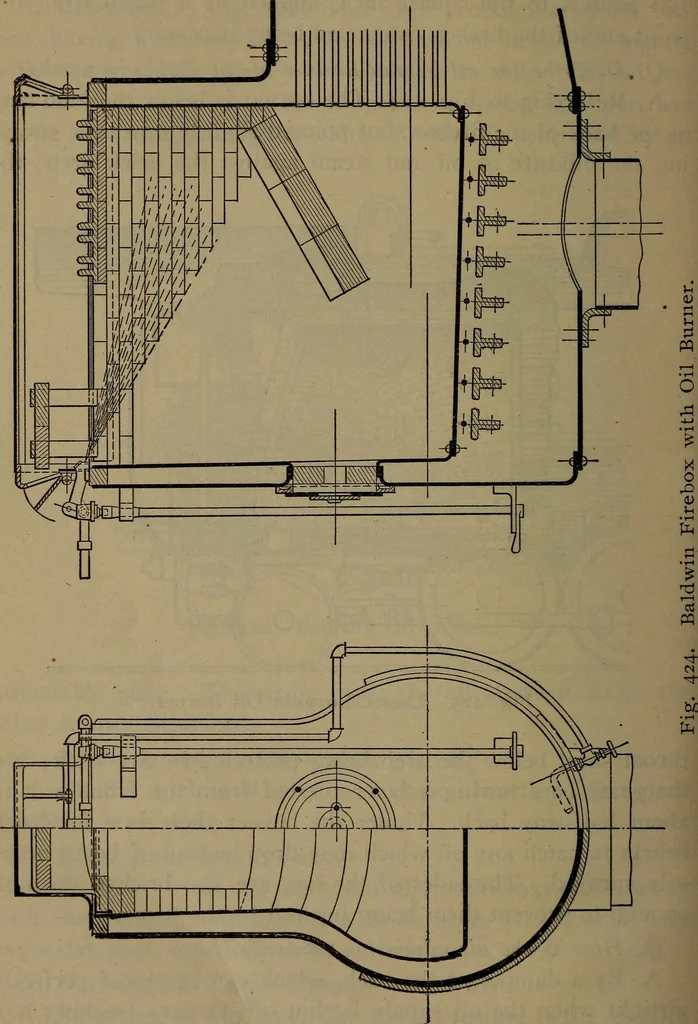

reof from the front wall toabout half-way back. Under the burner there is a fire-brickhearth to catch any oil which may drop instead of being prop-erly sprayed. The sides of the box are also bricked up highenough to prevent them being injured by the flame. 0. Hozc is the air admission controlled?… … FIRING WITH OIL. 773 peep hole. If there is a door it should be protected by fire-brick or ganister. Q. Describe the Baldwin oil-burning firebox for the Vander-bilt boiler? A. Referring to Fig. 425 : The burner is introduced throughthe lined casing which forms the back boiler head; it is slightly
