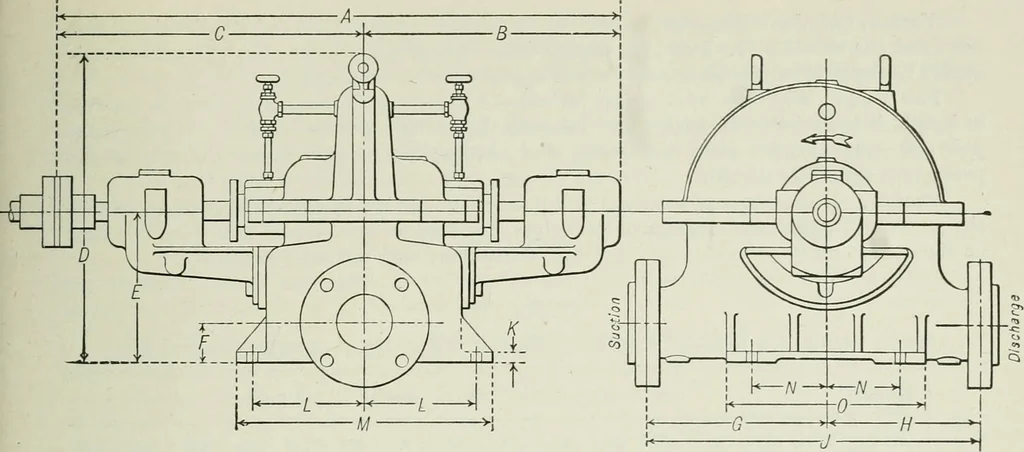

substantial concrete foundation withanchor bolts should be provided. Where such foundations are to be made, -plans will be sentso that the foundation work can be completed before the arrival of the pump. Piping in General. Run all piping in as direct a line as possible; avoid all unnecessaryturns.… … Fig. 29. Single-Stage Double-Suction Gould Pump. TABLE 15 DIMENSIONS OF GOULDS SINGLE-STAGE DOUBLE-SECTION PUMP. Size of Pump Suction andDischarge Flange Dia Bolt Circle Dia.. . No. of Bolts Size of Bolts No. of Bolts in Csg. FSize Bolts in Csg. Ft A B C D E F G H J K L M N O 14}-^16 J^10 26 4?i4…
