Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 202

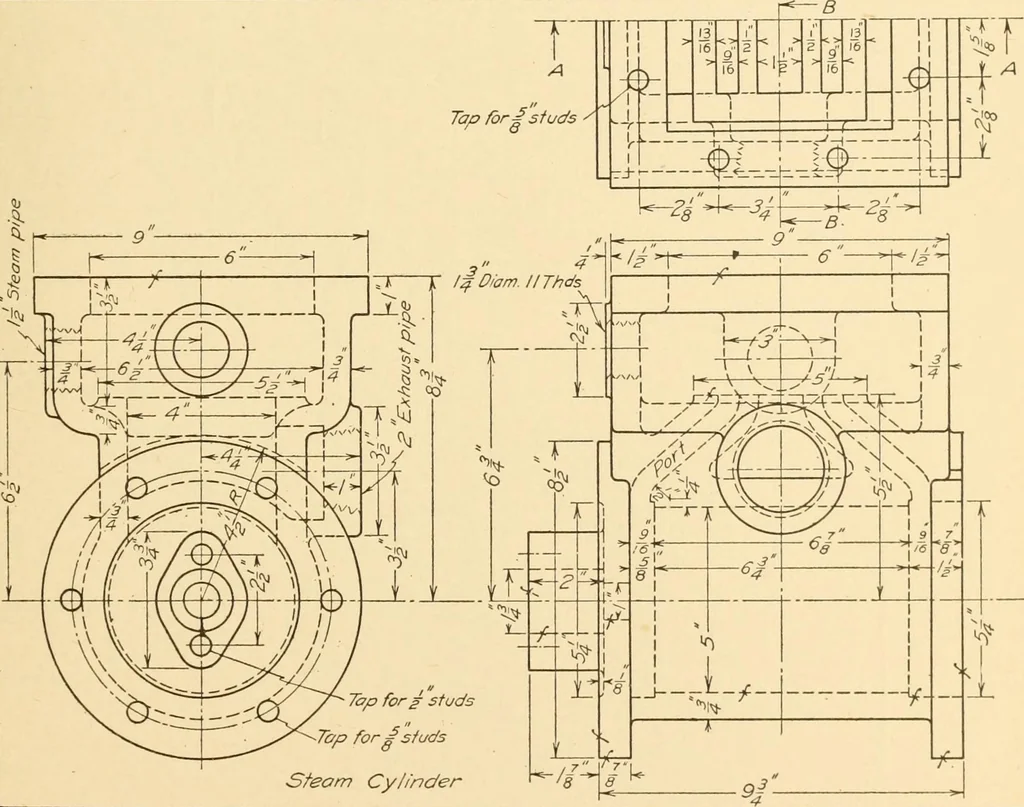

s half sections. De-tail for Bearing Cap is given on Fig. 311. PROB. 169.—Make a sectional assembly of the 5 x 6 Engine as shown in Fig.305. PROB. 170.—Make a sectional assembly of the 5 x 6 Engine taken through thevertical axis but at right angles to section shown in Fig. 305. PROB. 171.—Make an… … ■ 7c7o for 2 studs-Tap for^sfuds Steam Cylinder Fig. 319. Probs. 163 and 164. Steam Cvlinder. y/Em ir .T ^i<«) 8 ■ %^-
