Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U. S. seacoast defenses .. (1904)

United States. War Dept · Washington, Govt. print. off. · leaf 41

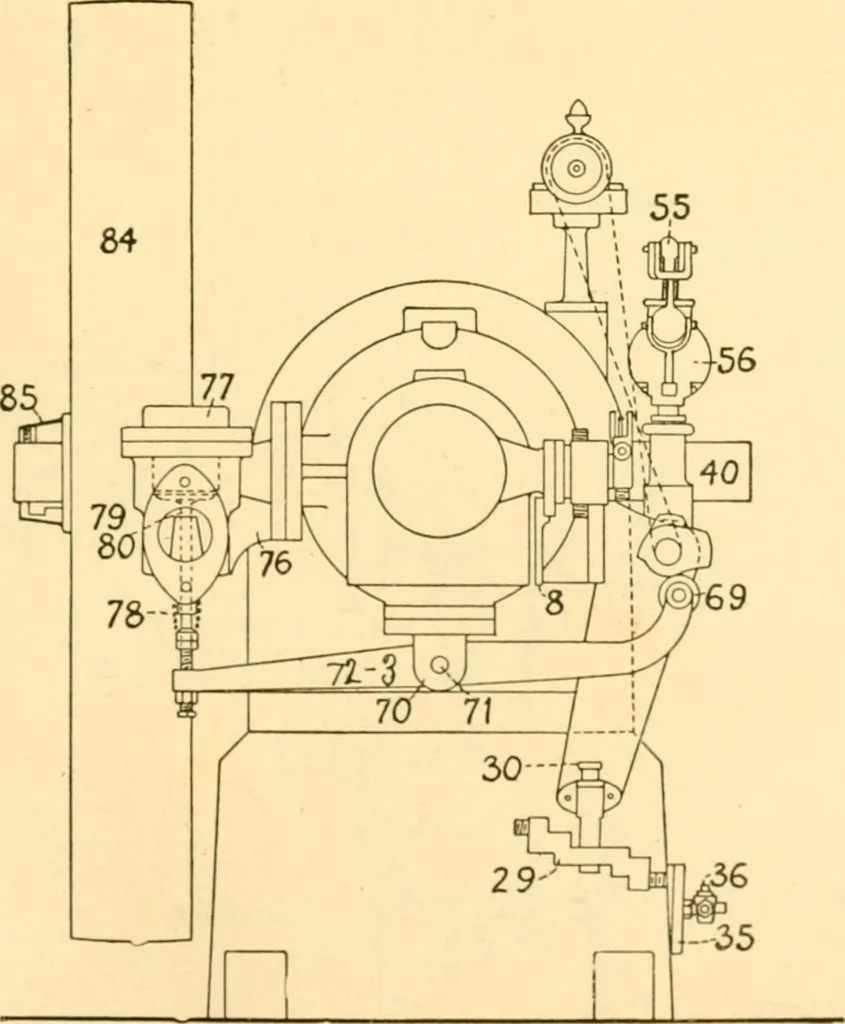

An illustration from Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U. S. seacoast defenses .., 1904, leaf 41 — counterweight lever.Governor-regulating jilate.Governor fork.Governor-fork spindle.Governor connecting rod.Governor conuecting-roil lever.Valve lever.Air-valve cam.Exhaust-valve cam.Cam rollers.Lever fulcrum.Lever-fulcrum pin..•\ir-valvo lever.Kxhaust-valve lever.Cam shifter.Locking… … 27a. Cylinder End Projection. 32 HANDBOOK FOR ELECTRICIANS.
