Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 434

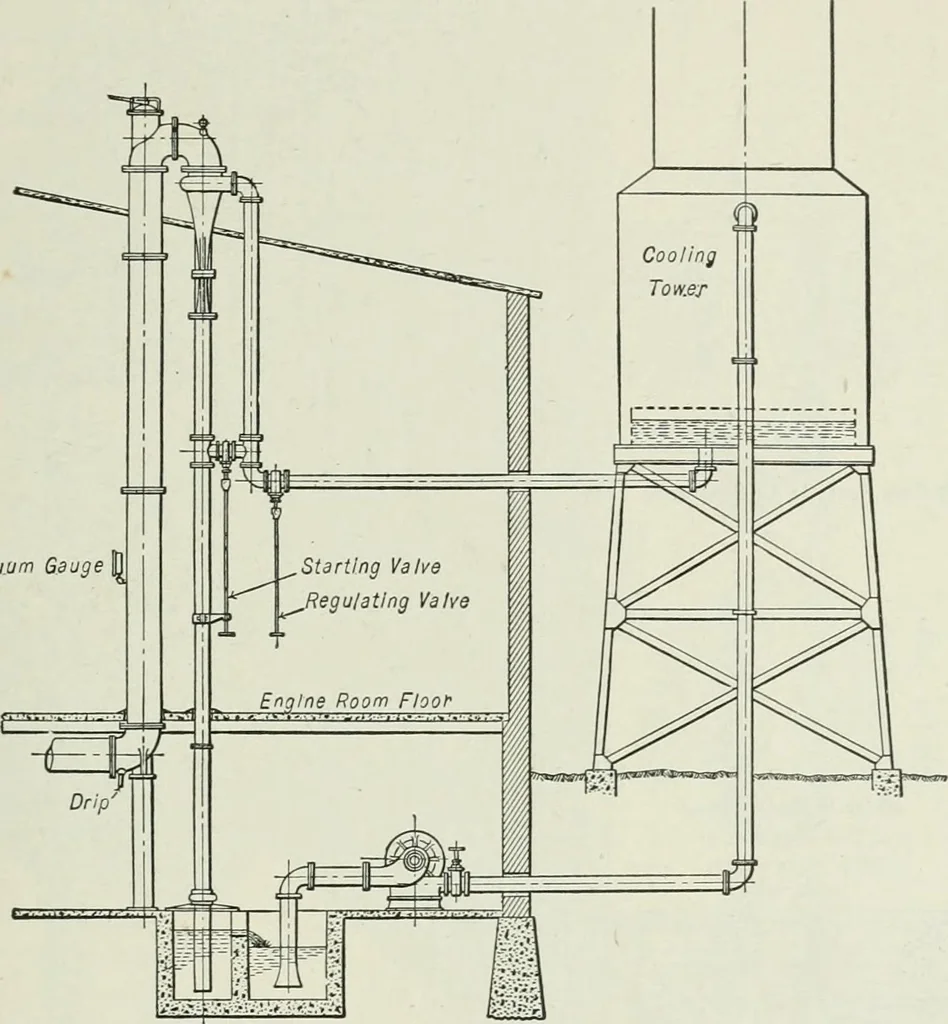

in order to present a large surface of water to the steam,taking the place of a spraying device. STEAM CONDENSERS 405 In some cases, owing to the physical layout of the ground or flood conditions to be contendedwith, it is necessary to place the hot well considerably higher than the level of the… … Vacuum Gauge [D Fig. 23. Install.^tion of Barometeic Condenser in Conjunction with Cooling Tower. spray nozzles. Fig. 24, or, in connection with cooling towers, Fig. 23, the catch basin of the towermay be located so that the level of the water is approximately 18 ft. above the hot well, andthe…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
