Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 560

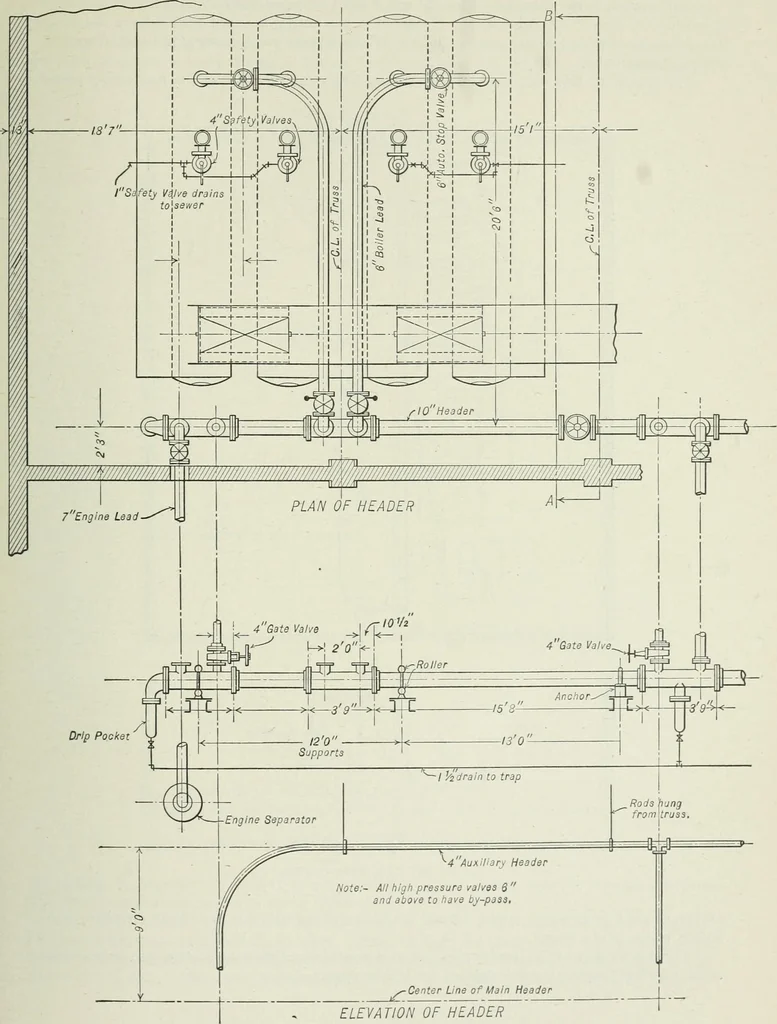

Fig. 1. Single-Header System. The system best adapted for the needs of individual cases depends largely upon the sizeof plant and the character and nature of the load. Single-Header System. The single-header system, Figs. 1 and la, is the one generally pre-ferred and more often employed in small… … ELEVATION OF HEADERFig. la. Pl.^n and Elevation of Single-Header System.(See Fig. 6 for sectional elevation.) 528 POWER PLANTS AND REFRIGERATION This system is the cheapest to install, and when properly designed and constructed makesa satisfactory layout. A valve should be placed in the header…
Building · Heating · Ventilation
