Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 577

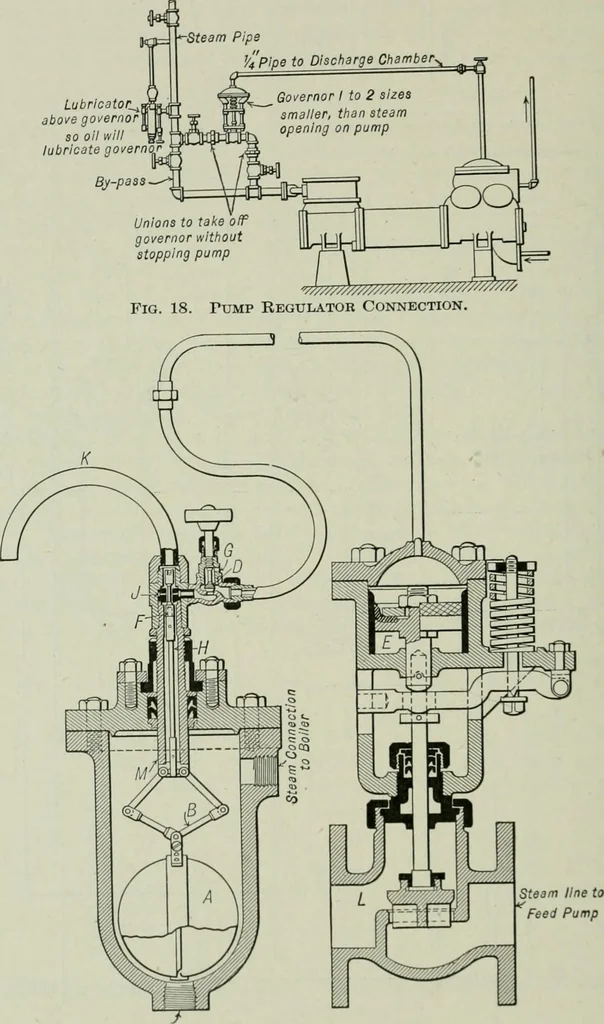

boilers. The operating check and stop valve may be located as high as the feed mamwiU permit, if desired, and an extension handle used on the operating valve. Fig 17 shows the feed main located above the boilers with hand regulation for one boilerand automatic regulation for the other. The sketch… … Fig. 19, Water Connection to BoilerDetails op Thermofeed—Feed-Water REOtriiATOR. POWER PLANT PIPING 545 Unless the water is delivered to the feed-water heater from a supply main under pressurean additional pump will be necessary, or one of the pumps shown may be utilized for this purpose,and an…
Building · Heating · Ventilation
