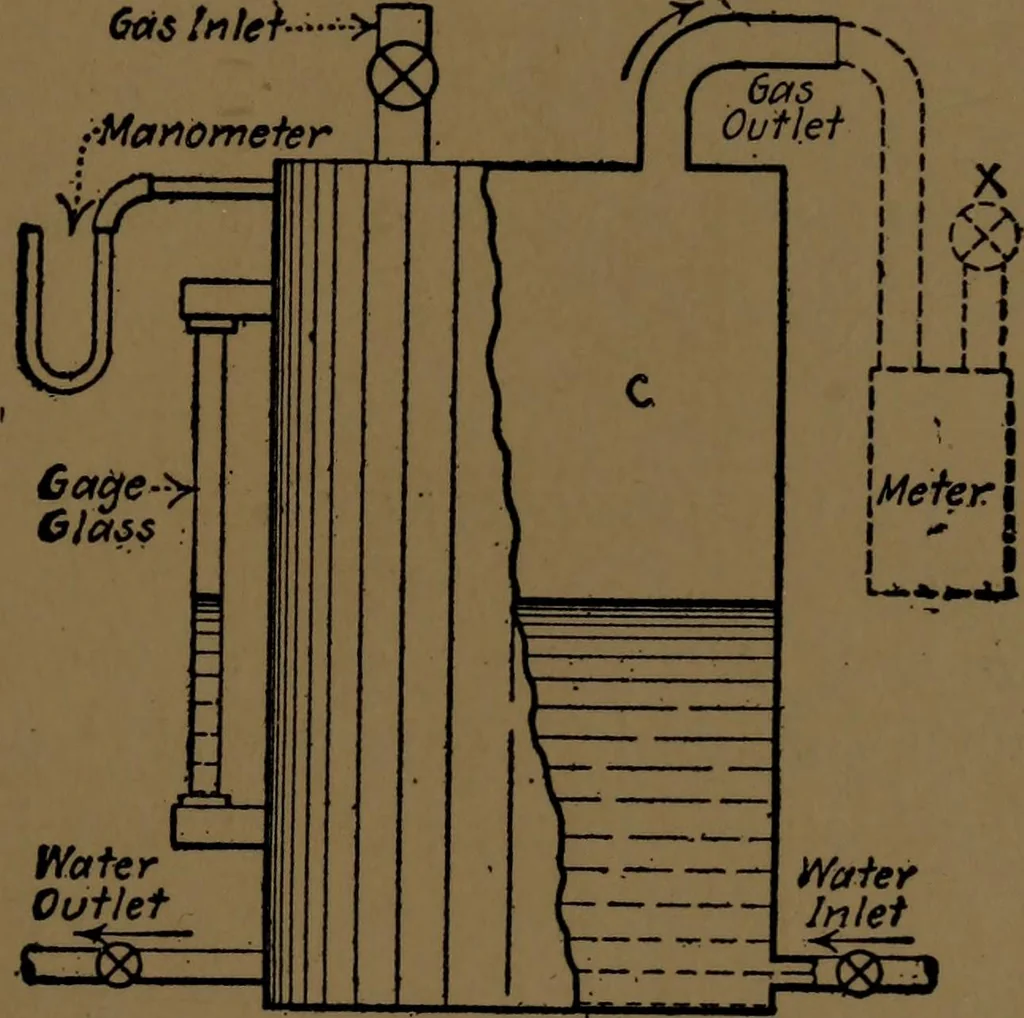

inlet, thevalves being properly adjusted. The gas displaced is measuredby the rise of water level in the gage glass. Commercial forms of gas meter are generally of the drymeter type and are arranged to measure continuous flow.In this type there are two bellows chambers which are alternatelyfilled… … Fig. 56.—Gasometer. As gas meters in general record volumes under the exist-ing conditions of pressure and temperature, these conditions shouldbe noted if it is desired to translate the readings into weightsor into volumes under standard conditions. (See p. 171.) (a) Calibration against a…
