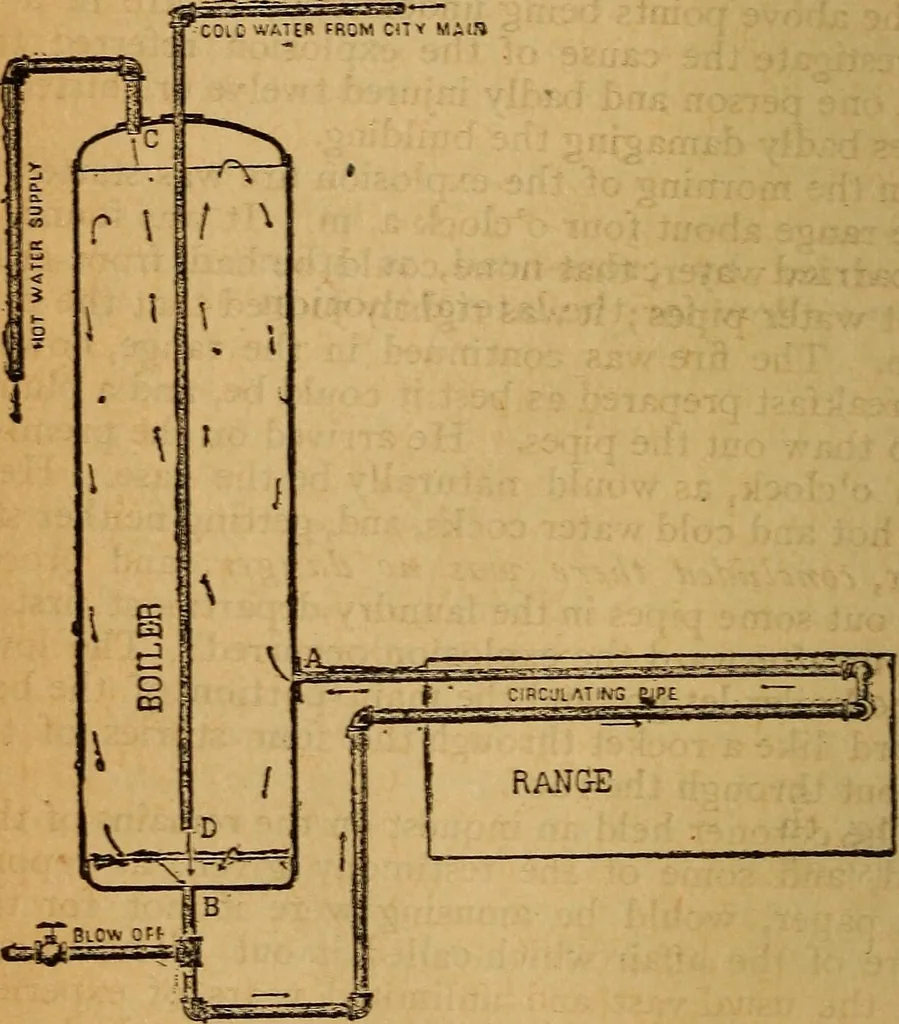

e was a very large one, and the heating surface wasfurnished by a coil oi 1%. inch pipe, placed near the top,instead of the cast-iron front or back, such as is commonlyused in the smaller ranges in private dwellings. The con-nections to the boiler were made in the usual manner; theaccompanying cut… … I filled with water. When it is filled, and all outlets areclosed, it is evident that no more water can run in, althoughthe boiler is in free connection with, and is subjected to, thefull pressure of the source of supply. When a fire is startedin the range, and the water in the circulating pipes,…
