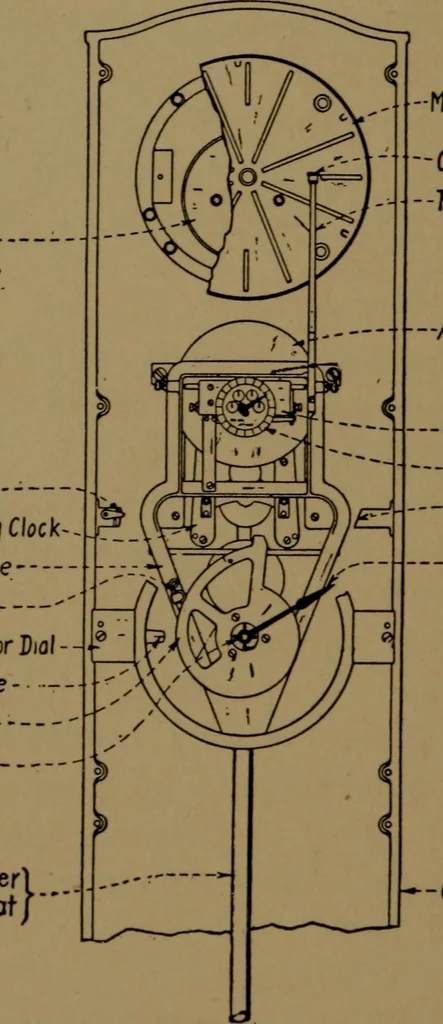

OW METERS 22 The head in inches of mercury should be transposed to feetof water. Referring to Fig. 61, it is seen that the column of wateron the right above X balances an equal column on the left. The (-Metal Disc for Chart -Capillary PenTen Arm6* Pay Clockin Metal Case Aluminum Disc Counter Dial… … --Case Ftg. 63—Builders Iron Foundry Venturi Meter Recorder. column of water between X and F, however, is balanced bymercury, so that the pressure difference between sections a and6 is not XY inches of mercury, but XY inches of mercury minus AT Yinches of water; that is (13.6-1)12 XY=1.05 XY, feet…
