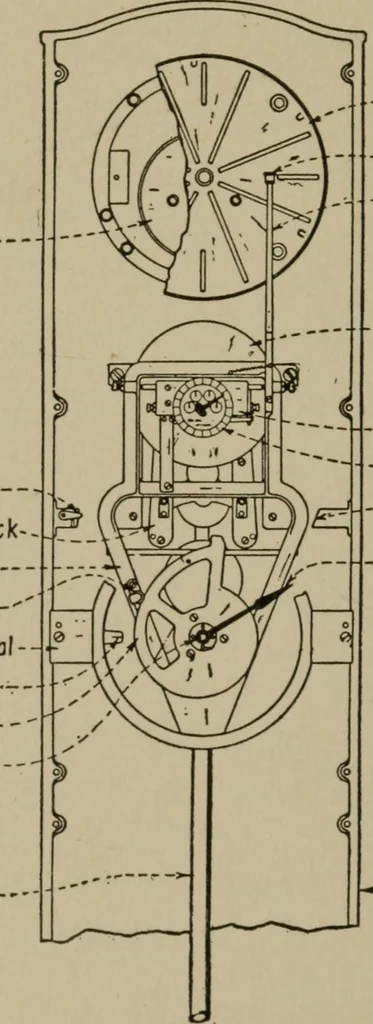

An illustration from Mechanical laboratory methods; a testing of instruments and machines in the mechanical engineering laboratory and in practice, 1918, leaf 131 — ed to feetof water. Referring to Fig. 61, it is seen that the column of wateron the right above X balances an equal column on the left. The . (-Metal Disc for Chart —Capillary ?en Ten Arm a Pay Clock-in Metal Case •Aluminum Vise Counter Dial f late J iiuj I > i I ,u ■ Counier Dial 4Day… … --Case Fig. 63.—Builders Iron Foundry Venturi Meter Recorder. column of water between X and F, however, is balanced bymercury, so that the pressure difference between sections a andb is not XF inches of mercury, but XY inches of mercury minus XYinches of water; that is (^^^-^)XY=1,05 XY, feet of…
