Mechanical laboratory methods; the testing of instruments and machines in the mechanical engineering laboratory and in practice (1922)
Smallwood, Julian Chase · New York, D. Van Nostrand company · leaf 166

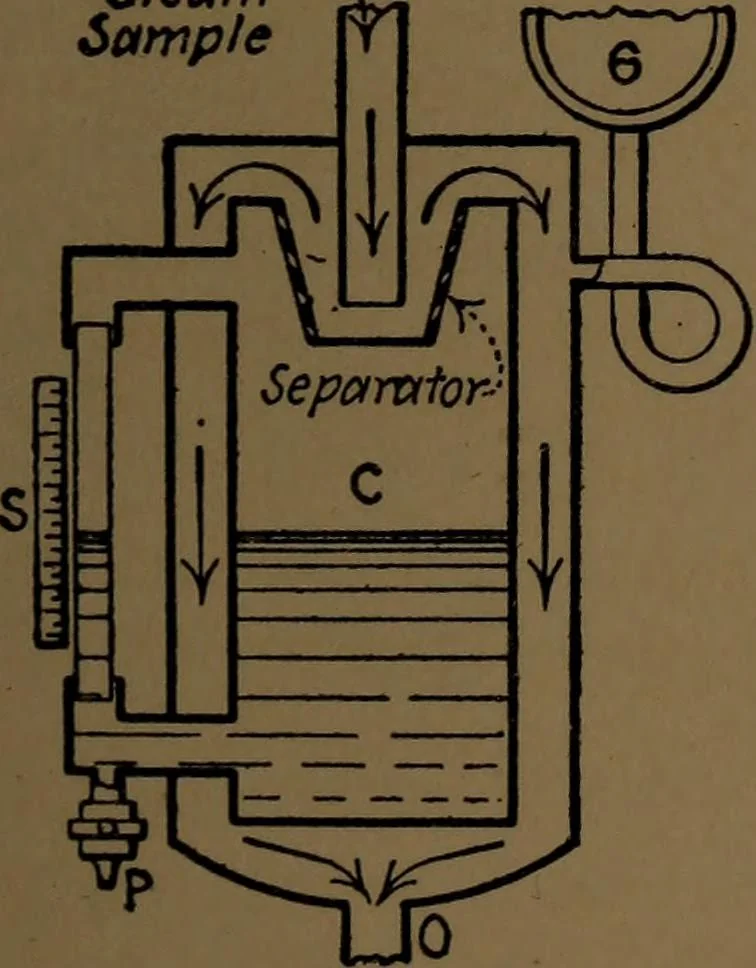

low the quality. Experiments have shown that complete separation of the water may be depended upon with a properly designed separator. (a) Calibration of the Dry Steam Meter may be made as forTest 30 (a). A calibration curve for the gage should be plotted. (b) Calibration of the Water Gage. The… … Fig. 72.—SeparatingCalorimeter. 150 STEAM CALORIMETERS 33 evaporation). The weights of the flask and contents and theheights of the levels in the water gage before and after the oper-ation are carefully measured. A number of such determinationsfurnish the data for a calibration curve. If the water…
