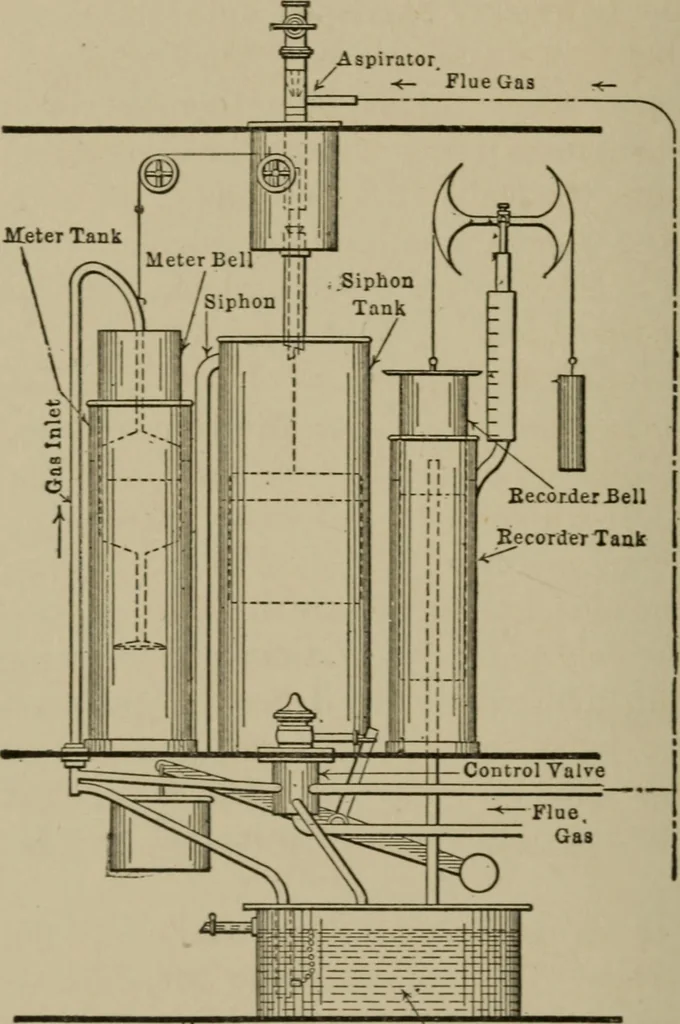

ose. Referring to Fig. 84,the water-sealed meter tank on the left alternately draws in anddischarges a definite volume of flue gas by means of the risingand falling meter bell. This gas is delivered to the absorptiontank, shown at the bottom of the figure, from which it is forced 192 PRODUCTS OF… … <y Absorption Tank Fig. 84.—Diagram of Simmance-Abady CO2 Recorder. tion of the recorder bell is therefore a measure of the CO2 absorbedfrom the sample, and this measure is translated by the recorderpen. The motive power of the instrument is derived from water.A water aspirator, at the top of…
