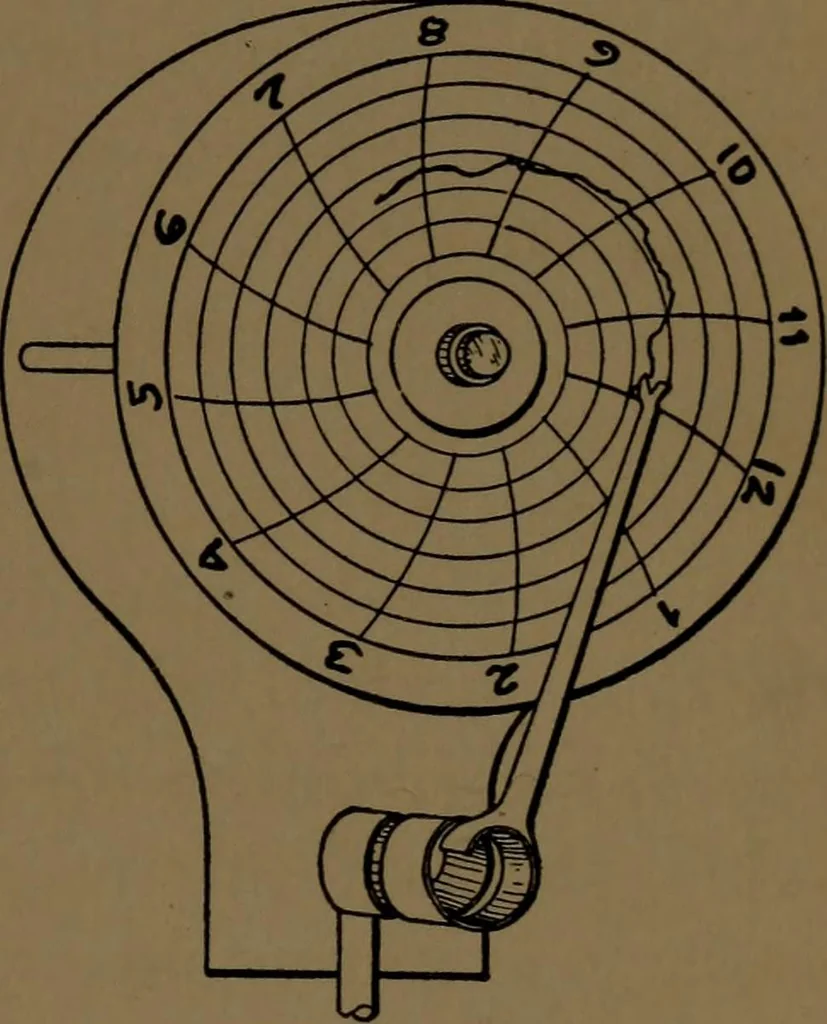

An illustration from Mechanical laboratory methods; the testing of instruments and machines in the mechanical engineering laboratory and in practice, 1922, leaf 44 — ured pressure, andadded when above. Problem 3i. If the table and plunger of the test apparatus weigh 15J oz.,how much pressure does their weight produce in pounds per square inch,the diameter of the plunger being 0.50 inch? Is the difference betweenthis and 5 lbs. per square inch worth considering?… … Fig. 14.—Mechanism ofPressure Recorder. 4. Draft Gage CalibrationPrinciples. Draft gages are generally special forms of manom-eters used to measure the reduced pressure (less than atmosphere)in chimneys, which creates the draft. This is expressed in inchesof water and, as it is usually only a few…
