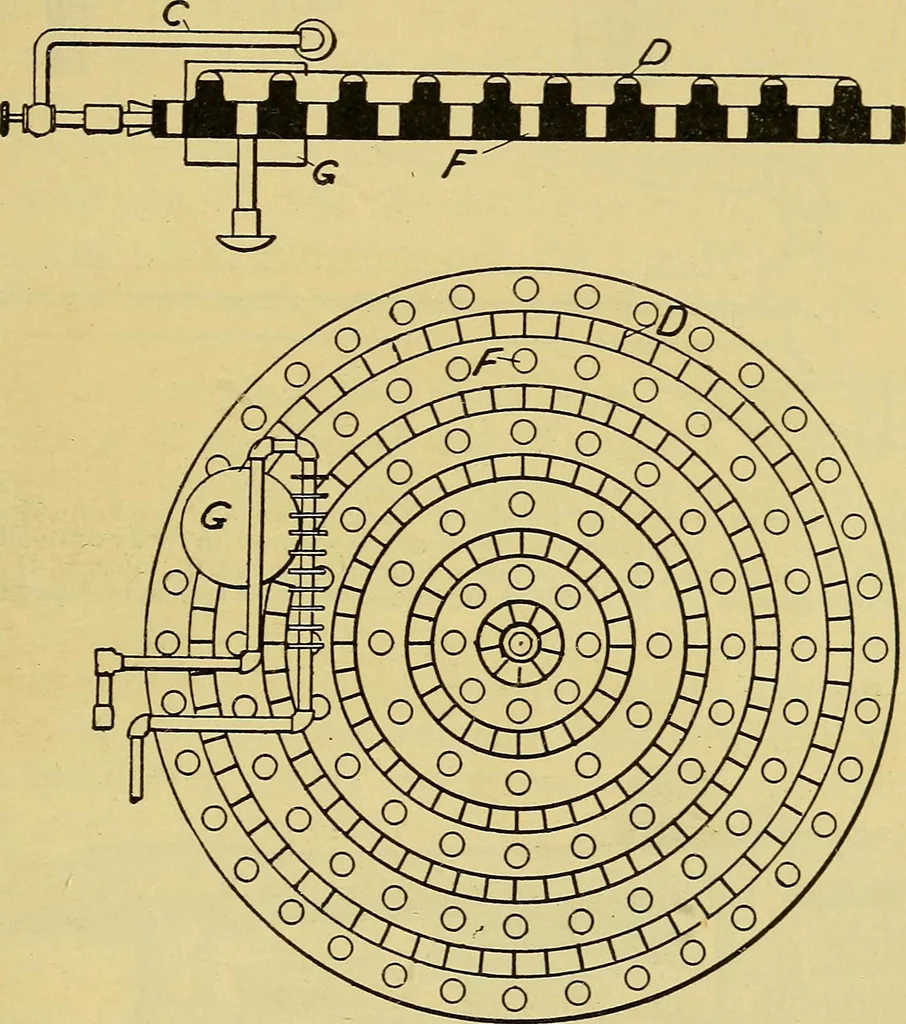

of the perforations just mentioned. The BURNERS AND REGULATORS. 603 gas from the mixing chamber, entering these perforations, passesbetween the two tubes, and, mixing at the top of the tube withthe air drawn through the draught tube, produces a very hotflame, as in the ordinary type of Bunsen gas… … Fig. 442.—Plan and Sectional Elevation of the White Burner. The White Gasoline Burner.—The burner used on the Whitecarriage is also an interesting departure from the common types.As shown in the plan and sectional sketches, it consists of anupper, or face, plate of cast iron, having concentric…
