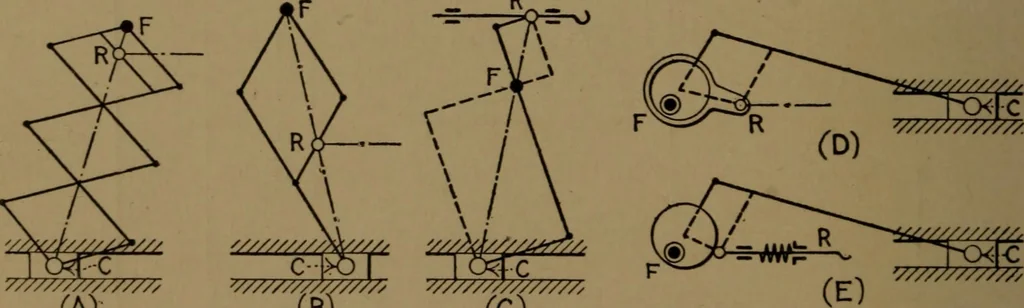

nt of the spring? Ans., 0.5 and 2.0 lbs. per in. 12. The Testing of Link Type Reducing Motions Principles. The pantagraph in various forms has been muchused to reduce engine cross-head motion for the purpose of drivingindicators. Fig. 41 shows a number of them, diagrammatically.In these and in the… … 777777777777777? (A) 7777/777/7/77/ (B) TOf;C„, 777777777777777Z Fig. 41.—Pantagraph Reducing Motions. There are two conditions necessary to the proportionality ofmotion of the points R and C. First, they must lie on a straightline passing through F, and second, the links that are parallelin one…
