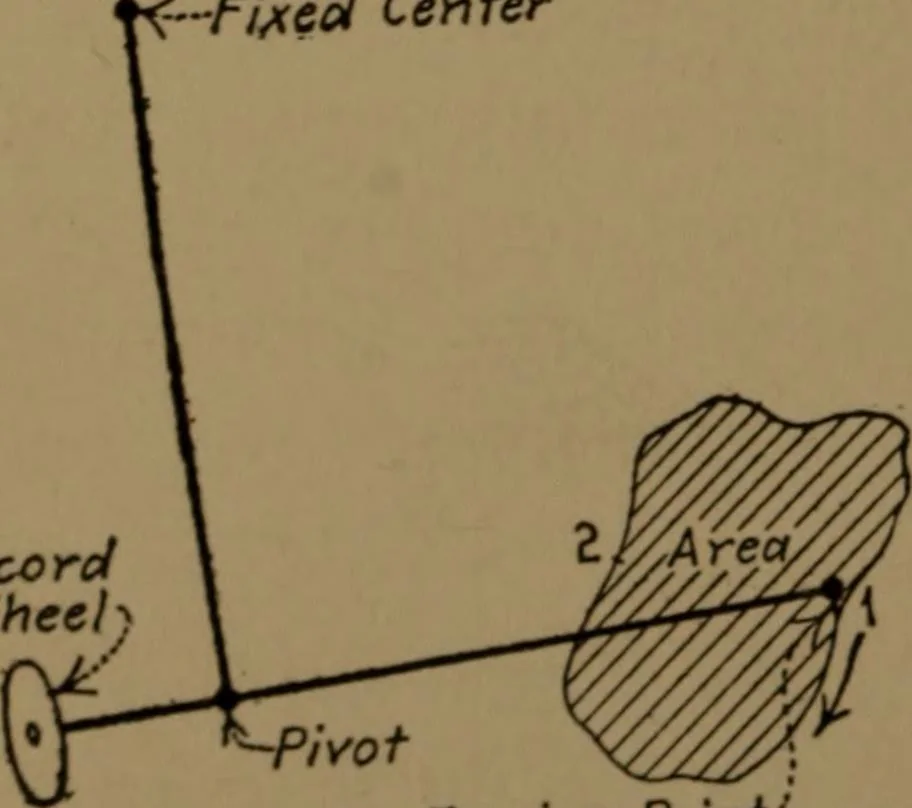

1-2-1 the record wheel follows in a certainpath and, through contact with thesurface upon which it bears, is givena motion partly rolling and partlysliding. The principle upon whichthe instrument depends is that theytheifh \ Ji^li^ rolling motion of the wheel is directly proportional to the area… … 14 PLANIMETERS 77 fixed center of the instrument is placed within the area, thussecuring a greater reach of the tracing point. (See Fig. 51.)In this case, the readings of the wheel must be interpreted dif-ferently and the constant known as thezero circle must be known. The zero TTCk*circle maybe…
