Mechanical laboratory methods; a testing of instruments and machines in the mechanical engineering laboratory and in practice (1918)

Smallwood, Julian Chase · New York, D. Van Nostrand company · leaf 240

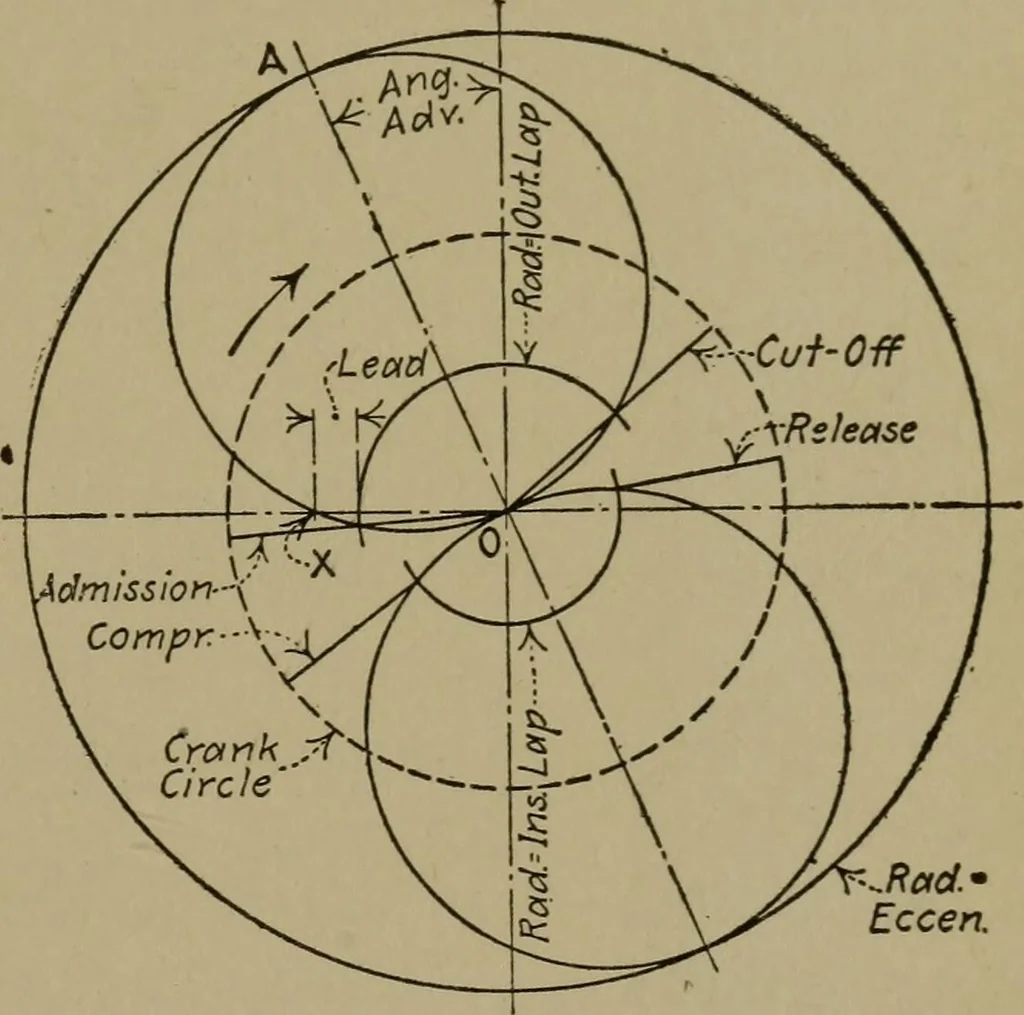

An illustration from Mechanical laboratory methods; a testing of instruments and machines in the mechanical engineering laboratory and in practice, 1918, leaf 240 — us the lead onthe head end. The circleOX A is next constructed,which fixes the angular advance by the line OA. When thelap circles are put in, the events of the stroke may be determinedin the usual manner. It may be noted that it is convenient to work with the sumof the outside laps and of the… … Eccen. Fig. 92.—Zeuner Valve Diagram. Problem 42i. text following it. Problem 422. The lead on the head end of a steam engine is found tobe TS in., and on the crank end A in. If the leads are to be made equal toihb in., should the valve stem be lengthened or shortened and how much?Should the…
