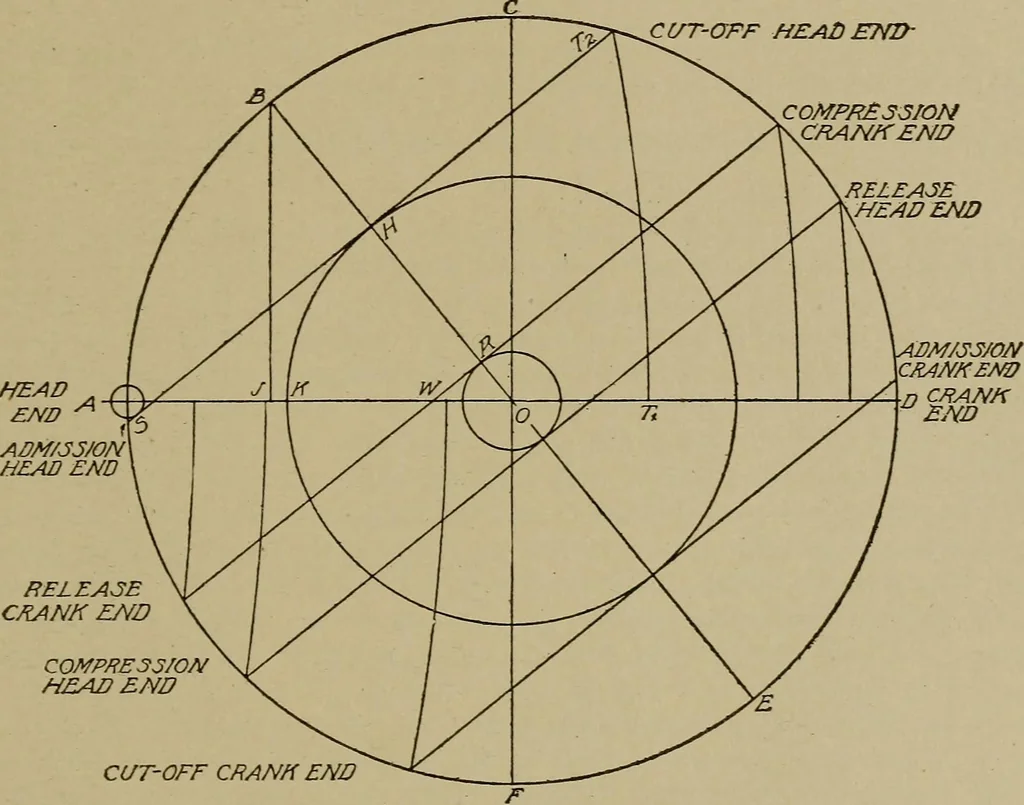

e figure have been located. To find the per cent of stroke at which the several events occur, take a radius proportionately equal to the length of the connecting rod and describe Rthe arcs shown. As — is \, L equals 5 R. But R is one-half the valve travel, i.e., 1.5 inches. L = 5X1.5= 7.5 inches… … RELEASECRANK END COMPRESS/ONHEAD END Fig. 26. CUT-OFF CRANM END Diagram for Finding Events for Head and Crank Ends; Lead, Valve Travel, andLaps being Given vertical line C F, sweep the arcs shown from the points of admission, cut-off,etc., on the head and crank ends. Remembering that the head-end…
