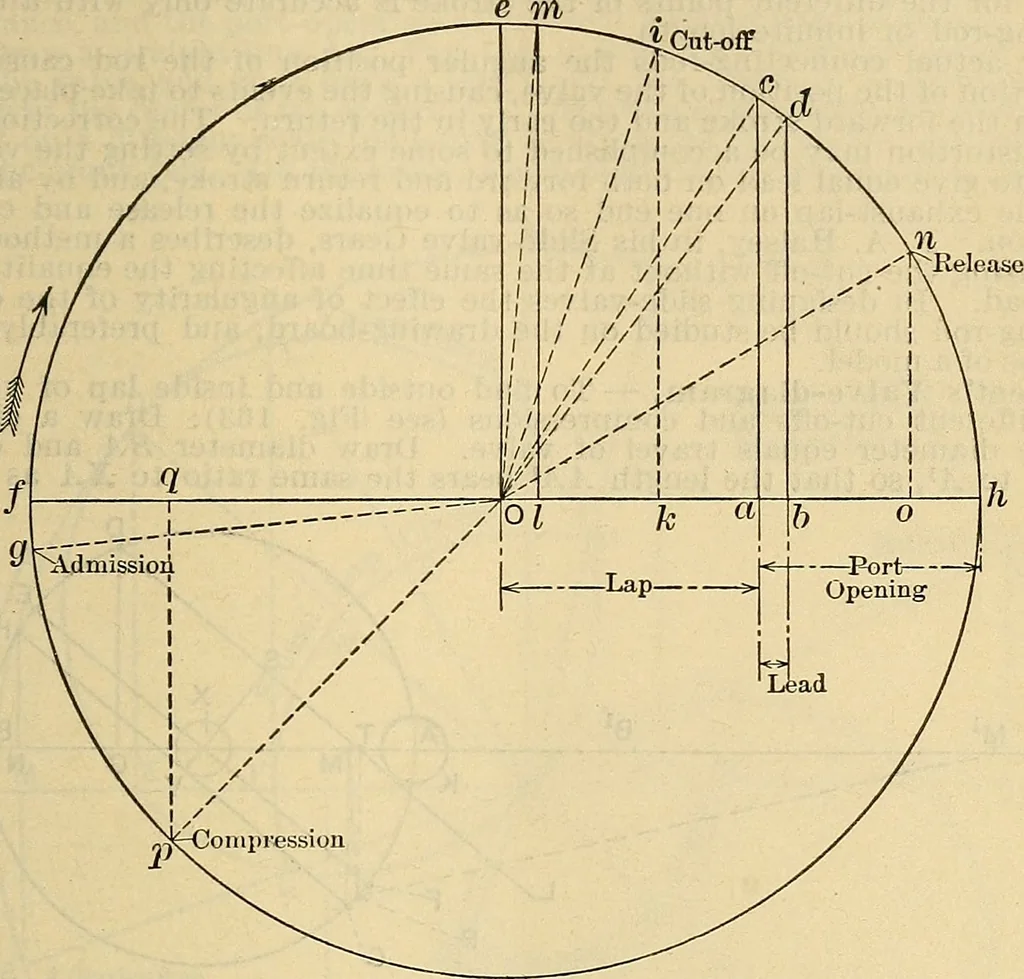

f stroke completed at cut-off. Set off Ol = exhaust- THE SLIDE-VALVE. 1035 lap and draw lm; em is the exhaust-lap angle. Set off hn — ec + cd — em,and On is the position of crank at release. Set off fp = ec + cd + em,and Op is the position of crank for compression, fo -h fh is the fractionof stroke… … Fig. 162. If a valve has neither lap nor lead, the line joining the center of theeccentric disk and the center of the snaft being at right angles to the lineof the crank, the engine would follow full stroke, admission of steambeginning at the beginning of the stroke and ending at the end of the…
