Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 96

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 96

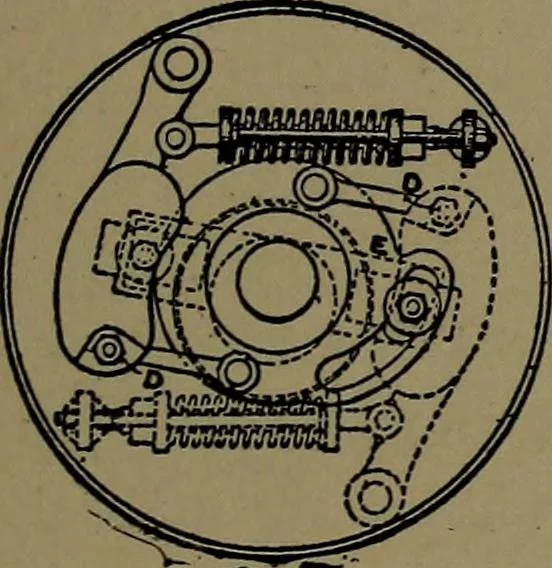

318. CRANK-SHAFT GOVERNOR.—The cen-trifugal action of two hinged weights, balanced bysprings, varies the eccentric by moving it towardthe centre by excess of speed. Eccentric is hingedto an arm of the pulley or fly wheel. … 319. FLY-WHEEL OR PULLEY GOVERNOR.—The centrifugal force of two pivotedweights connected to a spiral-slotted face plate,in which a wrist pin on the arm of the eccentricsets it forward or back; controlled by the adjust-ment of the holding springs.
