Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 101

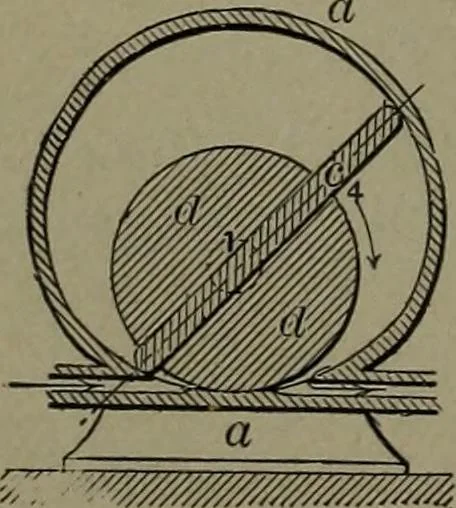

325. COCHRANE ROTARY ENGINE.— A wing piston rotating around the central axis of anouter shell or cylinder. A hollow cylinder of small-er diameter is pivoted eccentric to the wing axis tokeep one side in contact with the shell. The steamW//?/^ !^^/^^^^mW///M pressure revolves the wing and shaft with… … 326. FRANCHOT ROTARY ENGINE.—A slotted concentric cylinder carries a con-tinuous solid wing across and in contact with theinterior surface of an ovoid shell, shaped for ex-act diameter in all directions on the eccentricaxis of revo ution. STEAM POWER. 91
Mechanical movements
