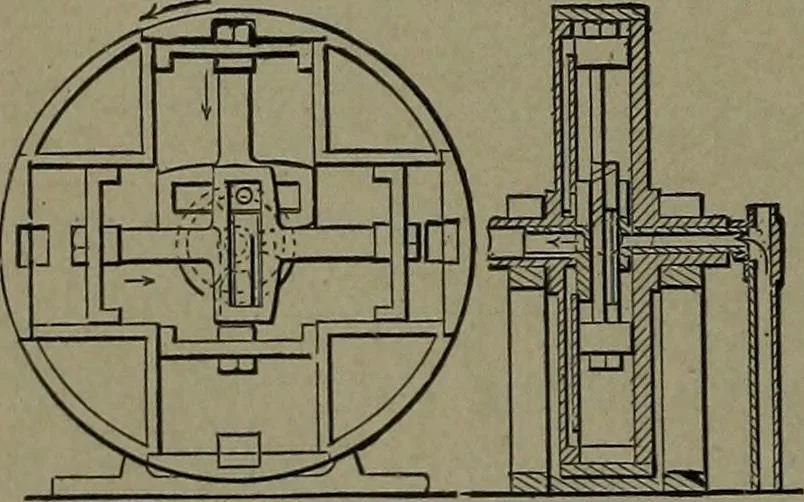

344. FORRESTER ROTARY ENGINE.—A cylindrical block and guard wing swing on an ec-centric on the shaft. The guard wing slides in andoperates the ports of a two-port rotary valve, theouter shell of which is operated by levers and con-necting rods for reversing the engine. … 345. KIPP ROTARY PISTONENGINE. — A broad pulley enclosingfour single-acting cylinders with op-posite pistons connected by yoked rods.A fixed crank pin and slide blockplaced eccentric to the pulley axis givesthe propelling force by displacing the pistons successively. Thesteam follows through ports…
