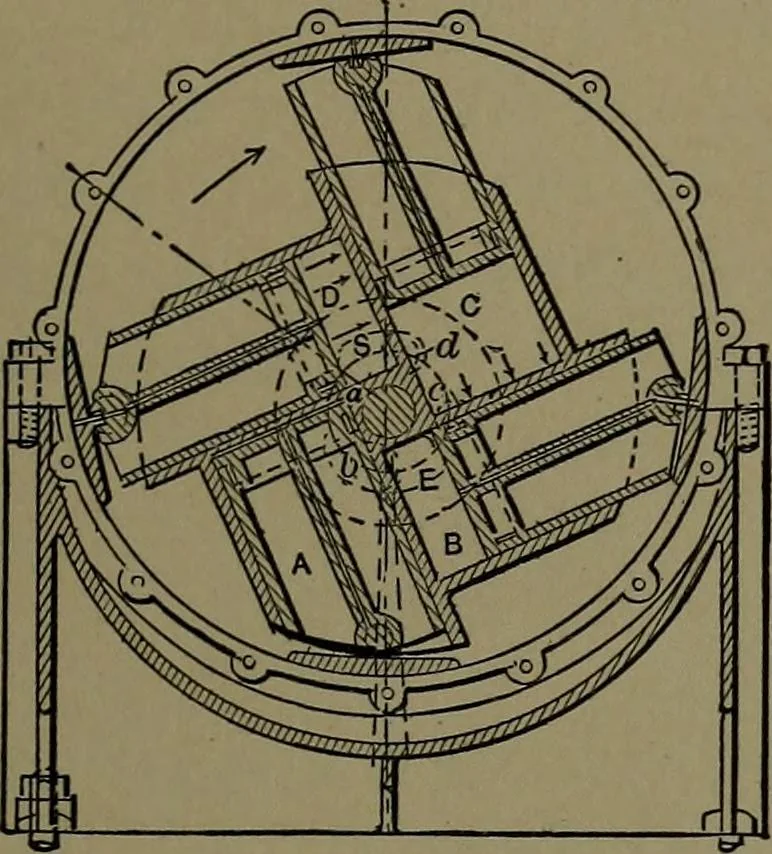

348. ALMOND ENGINE.—Foursingle-acting cylinders set tangent to ashaft which is central to an outer shell.The pistons have jointed segmentalplates at their outer end that pressagainst the outer shell and cause thecylinders and shaft to revolve by the ec-centric direction of their pressure. Discports…
