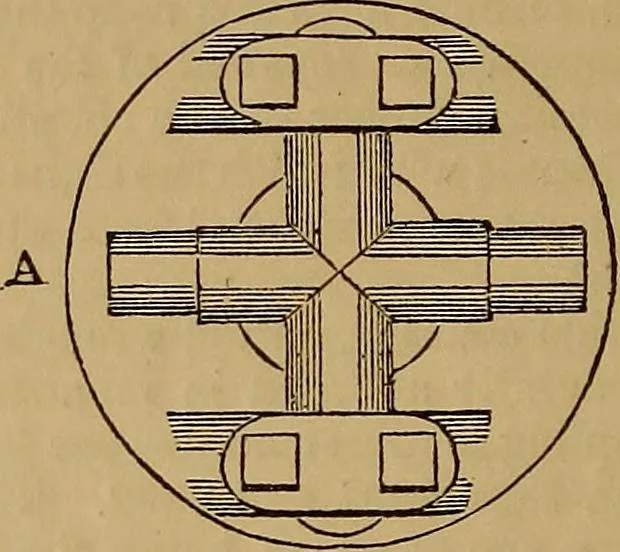

An illustration from A short treatise on the designing and construction of gearing and mill-work. Accompanied by an explanation of the construction and use of the odontograph of Prof. Willis .., 1873, leaf 79
2094. … In this illustration the shafts areshown at nearly the limit of the angleto which the single joint ought to beapplied. This angle ought not exceedtifteen degrees ; when a higher angleis introduced, the rotatory motion be-comes very sensibly irregular, and thefriction is greatly increased. This…
