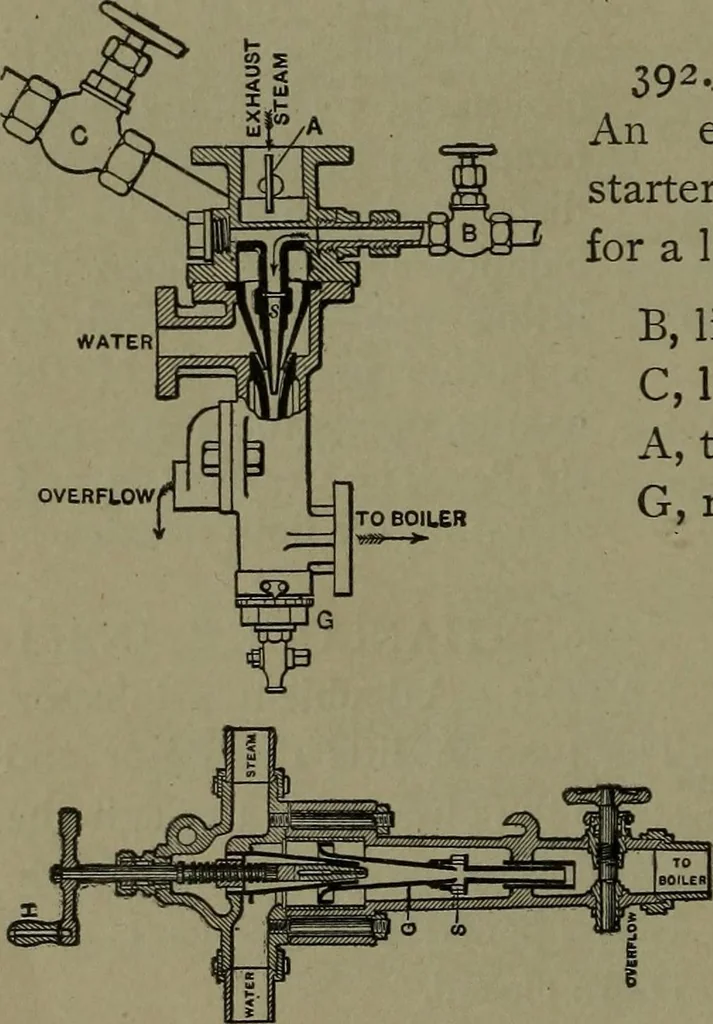

forcingnozzle andtube. C, the lift overflow. D, the force overflow. Two movements of the handle are required for starting; the firstopens the starting valve a and overflow D, with valve H open. Afurther pull of the handle opens the force valve h^ and the pressurecloses the overflow valve D. 392, «… … 393. SELLERS SELF-ADJUSTING INJECTOR.—The water nozzle G has a freemovement in the case and cageat S. With too much water for the steam, the nozzle is pushed back and partially closes the water area. Self-adjusting. 394. STEAM PUMP, with ro-tating piston valve and curved tap-pet. An arm on the…
