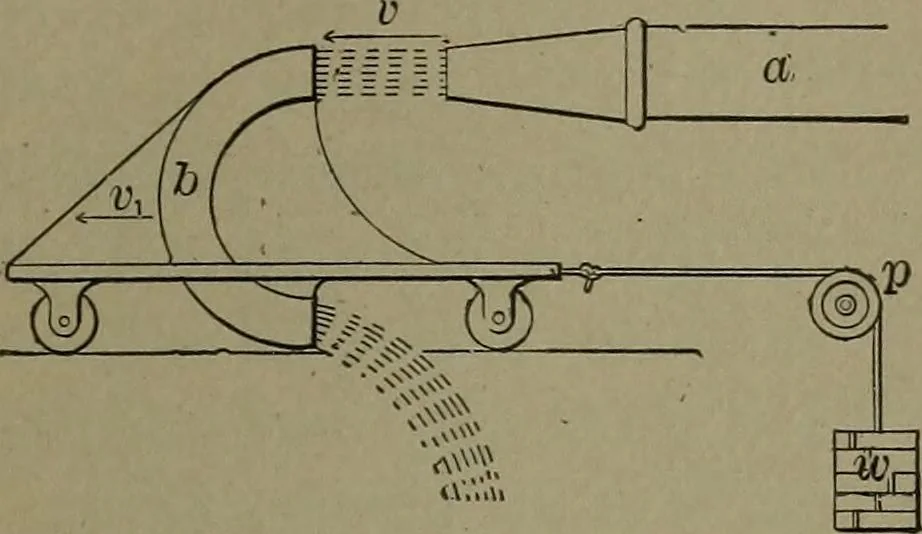

An illustration from Mechanical movements, powers and devices, 1911, leaf 150 — 500. BUCKETS OF A PELTON WATERWHEEL.—Showing the method ofseparating the jet and returning theparts nearly in line with the impactjet, thus gaining about eighty-fiveper cent, of the total power of the jet. 501. Section of bucket. HYDRAULIC POWER AND DEVICES. 139 … 502. POWER OF WATER.—Apparatus for measuring the forceof a water jet when dischargedthrough a semicircular tube ortrough. The total force is measuredby the weight w.
