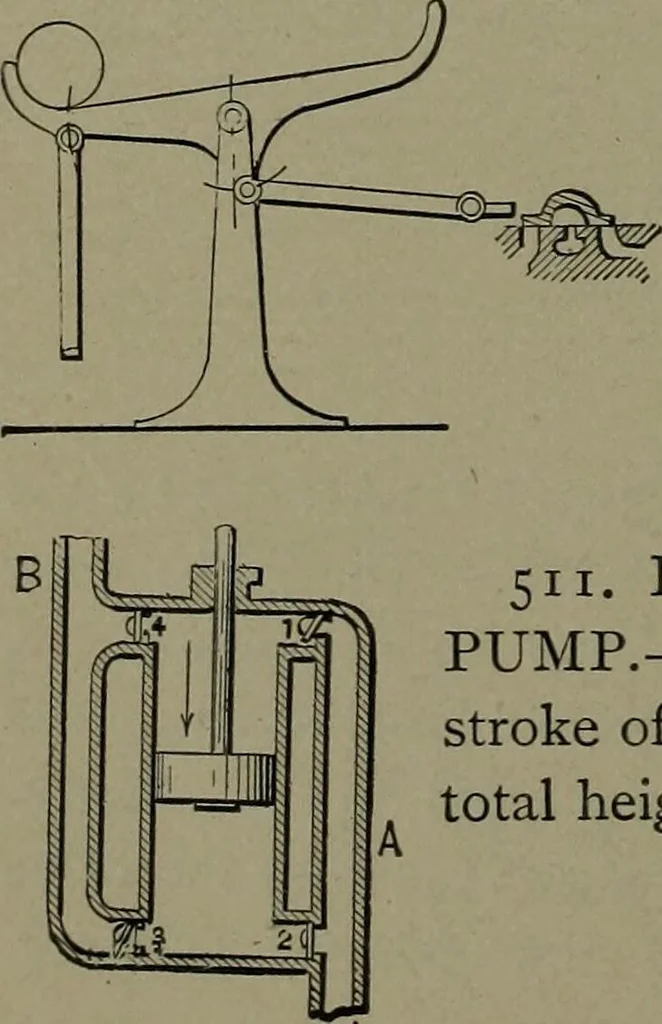

^/M([^ 509. YOKE CONNECTION for a continuouspiston rod and outside crank; crank shaft beyondthe steam cylinder. … 510. REVERSING MOVEMENT for apump valve. The piston-rod trip carriesthe ball frame beyond the level, when theball rolls across and completes the valvethrow. 511. DOUBLE-ACTING LIFT AND FORCEPUMP.—In this form the work is the same for eachstroke of the piston, and the pressure equal to thetotal…
