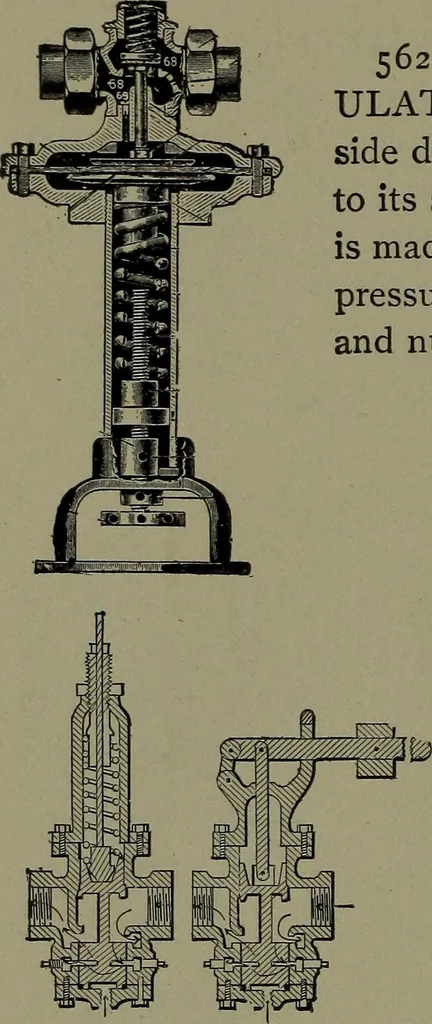

eclosure of the inlet valve, due to the differentialarea of the piston valves. When water is beingdrawn, the valve opens wide by the relief frompressure at the upper piston valve. 152 HYDRAULIC POWER AND DEVICES. 562. ^MASON WATER PRESSURE REG-ULATOR.— Over-pressure on the low-pressureside… … 563. PUMP WATER PRESSUREREGULATING VALVE.—A balancedpiston valve, with a differential balance byspring or lever and weight, is placed onthe steam pipe to a pump. The openingbeneath the lower piston is connected tathe water discharge pipe of the pump.Over-pressure raises the disc and shuts oHsteam.
