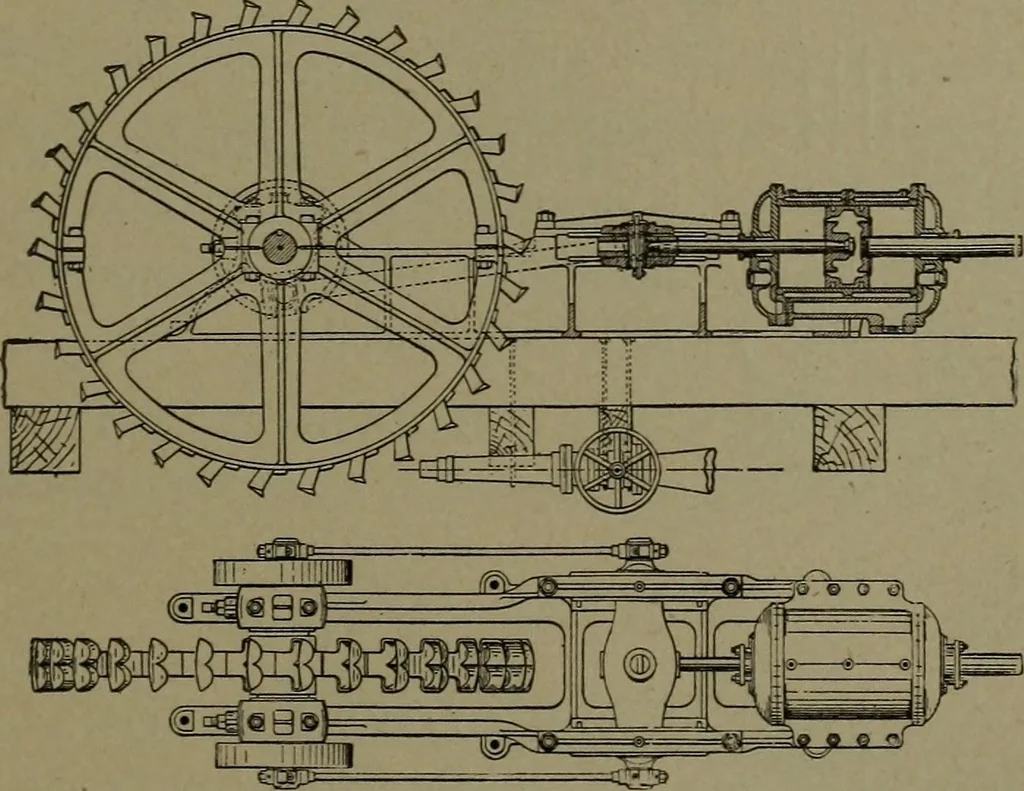

dng it down tothe separating tank, c, c, where itis liberated at the pressure dueto the hydrostatic head. The aitis delivered through a pipe, asshown in the cut, and the waterrises through a pipe to the tailrace. … 637. AIR COM-PRESSOR.—Pat- 1 tern of the Inger-soll-Sergeant DrillCo. Operated by aPelton wheel. Ver-tical section. 638. Plan.
