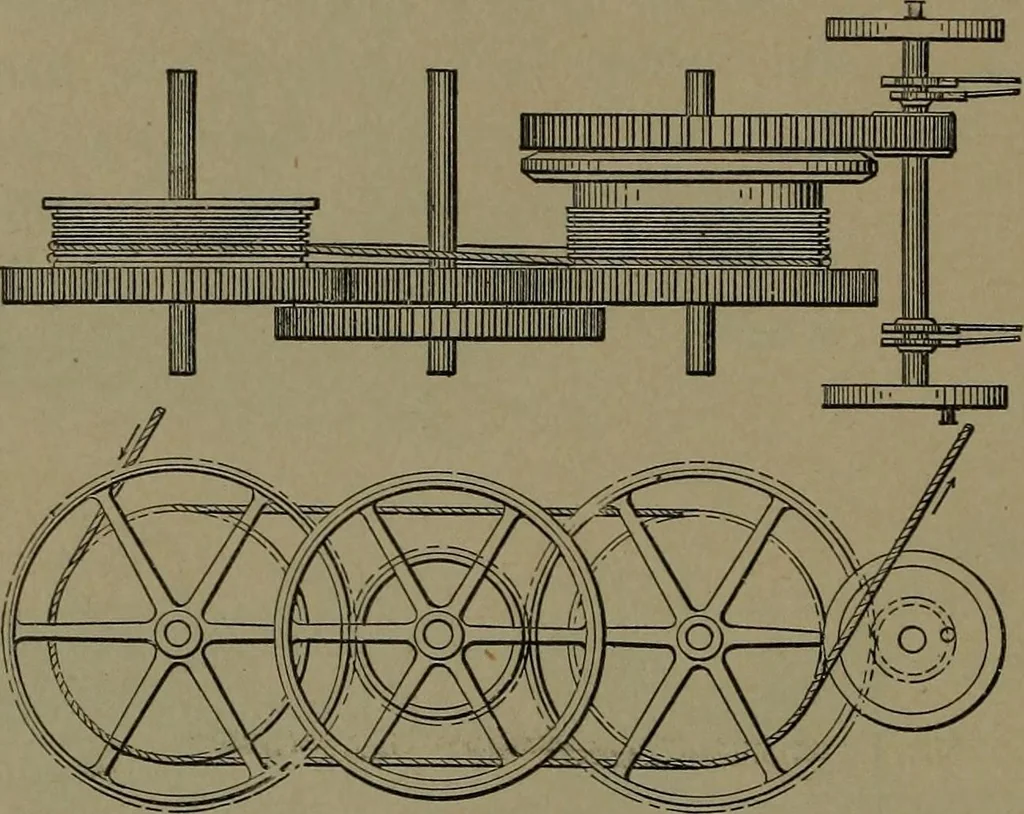

1259^ FREE RUN-NING AXLES for miningcars. The divided axle heldtogether by grooved bear-ings, makes a light runningcar on the small curves inmines. 1259^. GARBAGE FURNACE.—Plan and elevation. The garbagefalls through openings at the topand is divided on a curved partinghearth and dried by the heat… … HAULAGE.—Twogrooved drumswith gears and anintermediate b a 1 -ance gear and fly-wheel. The driv-ing shaft geared tothe hauling drum;brake wheel andband on the samedrum shaft. Shaftsare horizontal. Planand side view. 1259^. AIR BLAST FOR MOVING COAL, slack and dust. An engine and directconnected…
