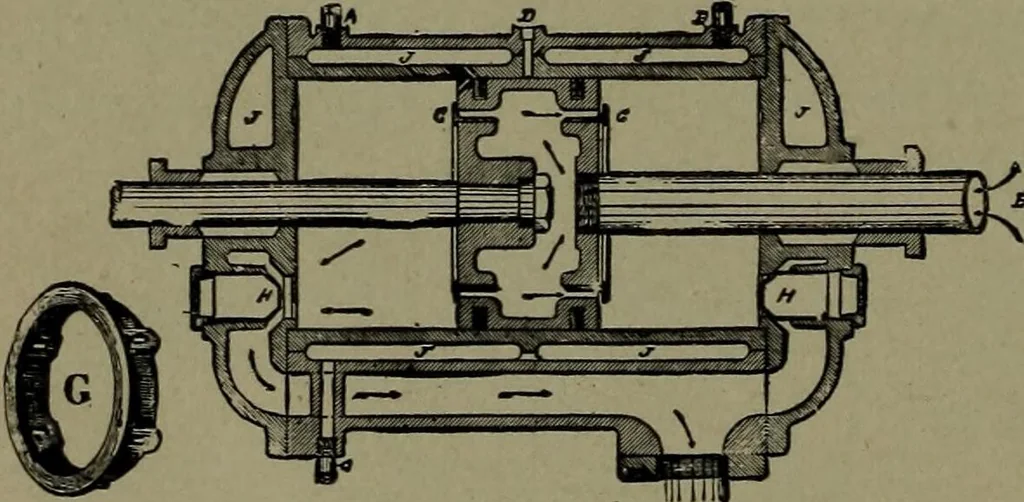

647. DUPLEXAIR COMPRES-SOR, with parallelmotion beams totwo single-acting aiicylinders from adouble-acting steamcylinder. N. Y.Air Brake model. (pX (o\ 648. TOGGLE-JOINT DUPLEX AIRCOMPRESSOR.—The crank moves thecommon joint of the long arms in a hori-zontal direction on a slide. The straightv^n-ing… … 649. AIR COMPRES-SOR CYLINDER, PIS-TON AND VALVES.—Pattern of the Ingersoll,Sergeant Drill Co. Takesits air through a hollow pis-ton rod at E to the interiorof the pistono The annular valves, G, G, open and close by theirmomentum. H, H, discharge valves closed by springs; J, J, waterjacket. 650.…
