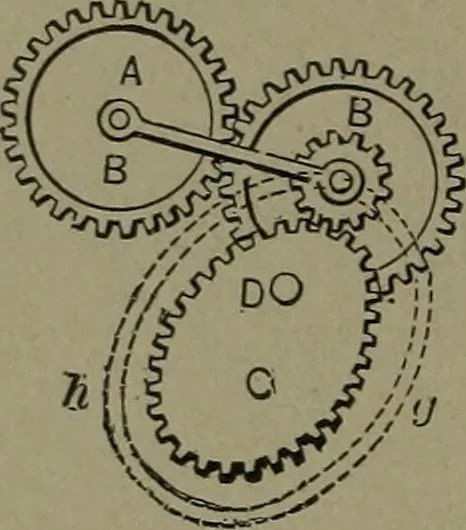

16 242 GEARING. 952. IRREGULAR CIRCULAR MOTIONfrom an elliptically eccentric gear train. C is theelliptic driving wheel turning with the shaft at D.B is the intermediate gear with a pinion follower tothe eccentric gear C. A and B are attached by anarm pivoted on their respective shafts, so that… … ALTERNATING RECTILINEARMOTION by the revolution of a sec-tor by which one revolution producesboth motions. The curved back ofthe sector just touches the extendedtooth of the rack frame at //, while the teeth at e and ^ are partly inmesh with the enlarged sector end teeth, thus preventing…
Mechanical movements
