Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 50

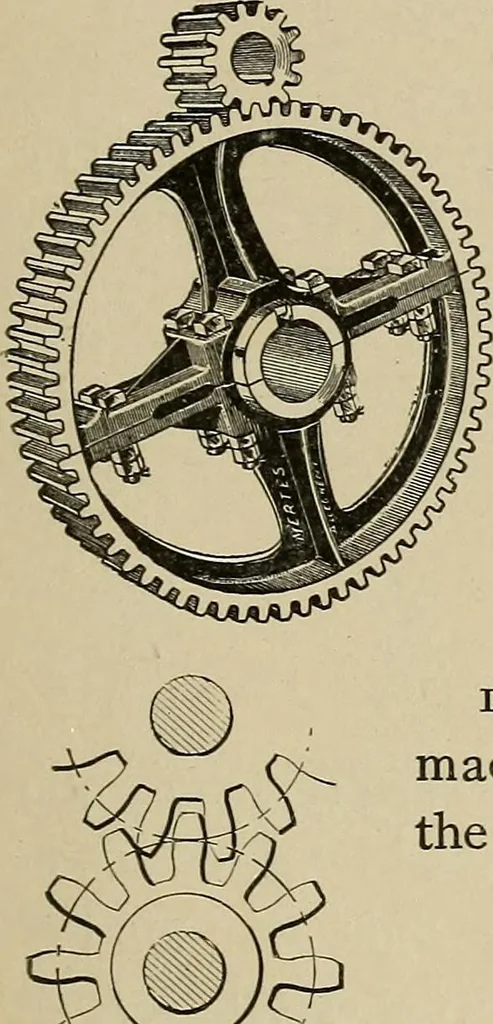

124. V-TOOTHED GEAR.—The teeth of whichare usually inclined from the centre lines of the faceequal to the amount of the pitch at the outer ends. … 125. SPLIT SPUR GEAR, showing methodof bolting on to the shaft of a trolley car. 126. STAR WHEEL GEAR, for wringing-machines, mangles, etc. Allows a variable mesh tothe teeth. Co mr
Mechanical movements
