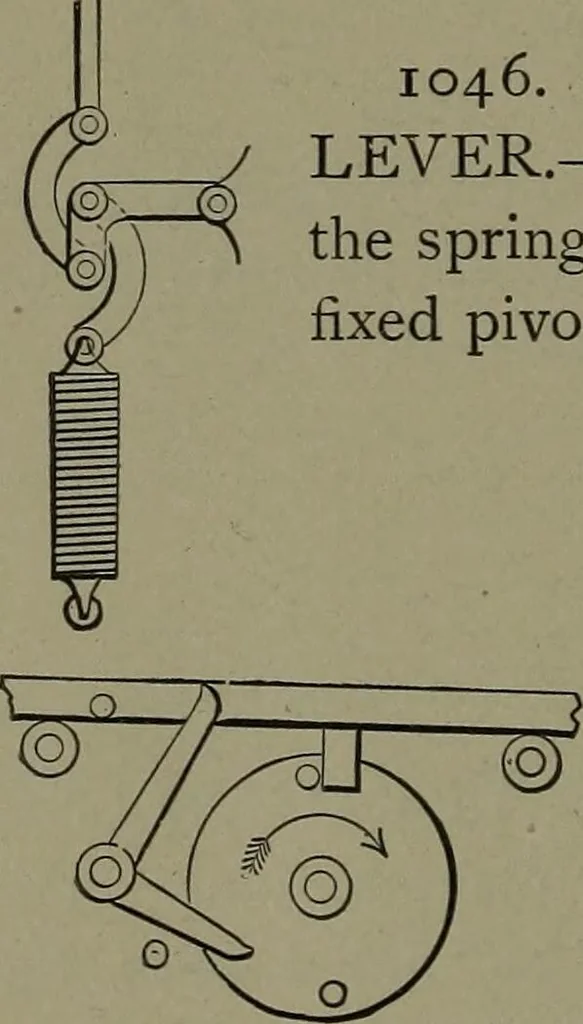

An illustration from Mechanical movements, powers and devices, 1911, leaf 273 — 1045. FOUR-BOLT CAM PLATE, usedfor throwing safe bolts and for expanding dies. 1046. EQUALIZING TENSION SPRING AND / LEVER.—The bell-crank lever equalizes the tension of foV. 4 . ^^^j A the spring by its varying position. Its long arm is on a fixed pivot.
