Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 275

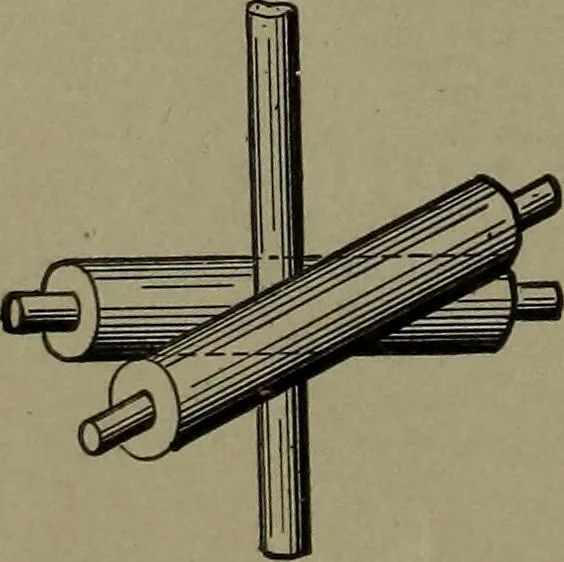

1060. ROCKING ESCAPEMENT.—Thesection teeth of the wheel pass the eye in therocking cylinder at each quarter, or at each,half-revolution when revolving. … 1061. ROTARY AND LONGITUDINAL.MOTION of a rod between rollers, with theiraxes at an angle. Rollers run in oppositedirections. MOTION AND DEVICES CONTROLLING MOTION. 265 (< <>■ &&■ 1062. RECIPROCATING FEED RATCHET.—For an intermittent feed, one pair of jaws may have areciprocating…
Mechanical movements
