Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 288

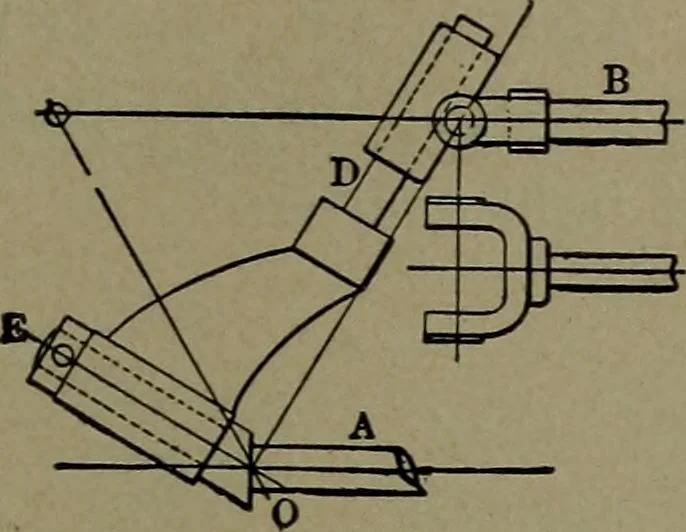

f 1128. FLEXIBLE ANGULAR COUPLING,for light work. May be a helical spring, round orsquare, wire or a tube, sawed on a spiral. Used ondriving handles for telescopes and other instruments. 1129. SLIDING CONTACT-SHAFT COUP-LING.—A cross bar sliding in two yokes onshafts in offset lines. Will also… … 1130. RECTILINEAR MOTION fromthe rotation of an angular crank pin. A,rotating shaft carrying crank pin E; D,arm with sleeve jointed to yoke and slidingrod B.
Mechanical movements
