Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 298

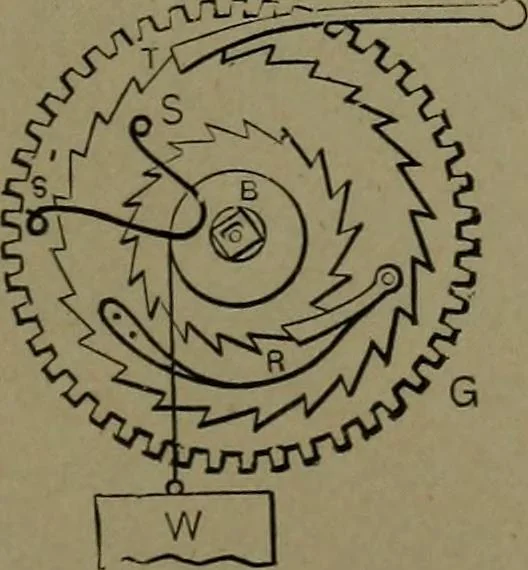

a spring barrel. G is the drivingspur gear. The larger ratchet has a fixedcheck pawl, T ; is loose on the arbor, but at-tached to the gear wheel by a curved spring,S, S. The smaller ratchet is fixed to thewinding barrel and arbor. The spring andpawl R are pivoted to the larger ratchet, and stop the… … 28S HOROLOGICAL.
Mechanical movements
