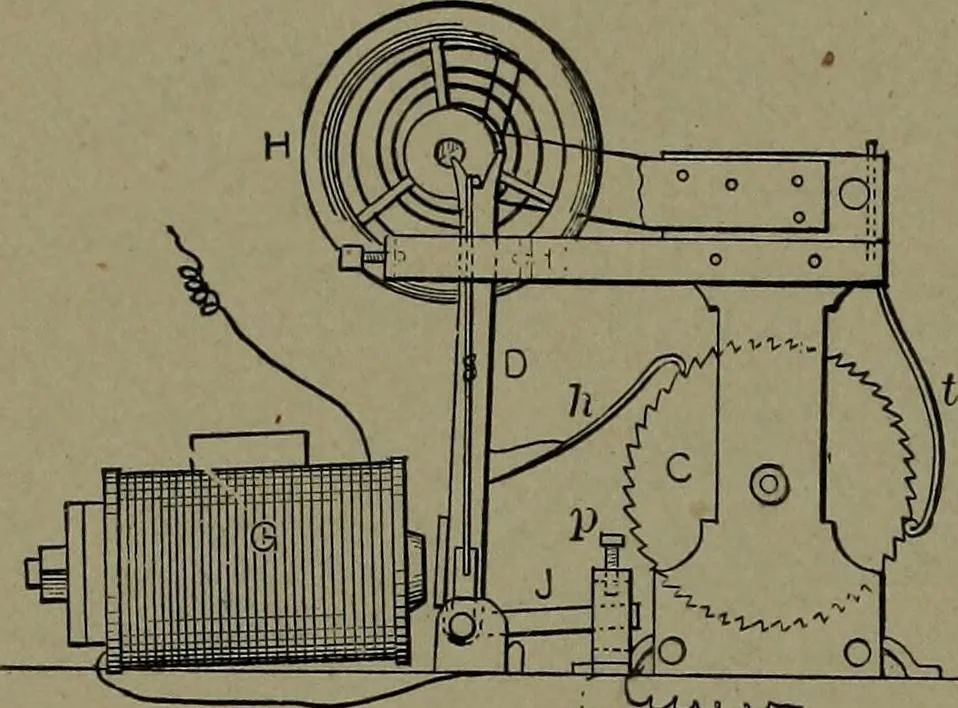

An illustration from Mechanical movements, powers and devices, 1911, leaf 305 — 294 HOROLOGICAL. … f^Z33r- 1194&. ELECTRIC BAL-ANCE WHEEL CLOCK.—G represents the magnet, Hthe balance wheel, D armature,111 a pin on the balance wheel,C ratchet wheel, h and / arepawls, P adjusting screw.When the circuit is closed themagnet draws the armature Dforward, whereby the ratchetwheel C is turned the…
