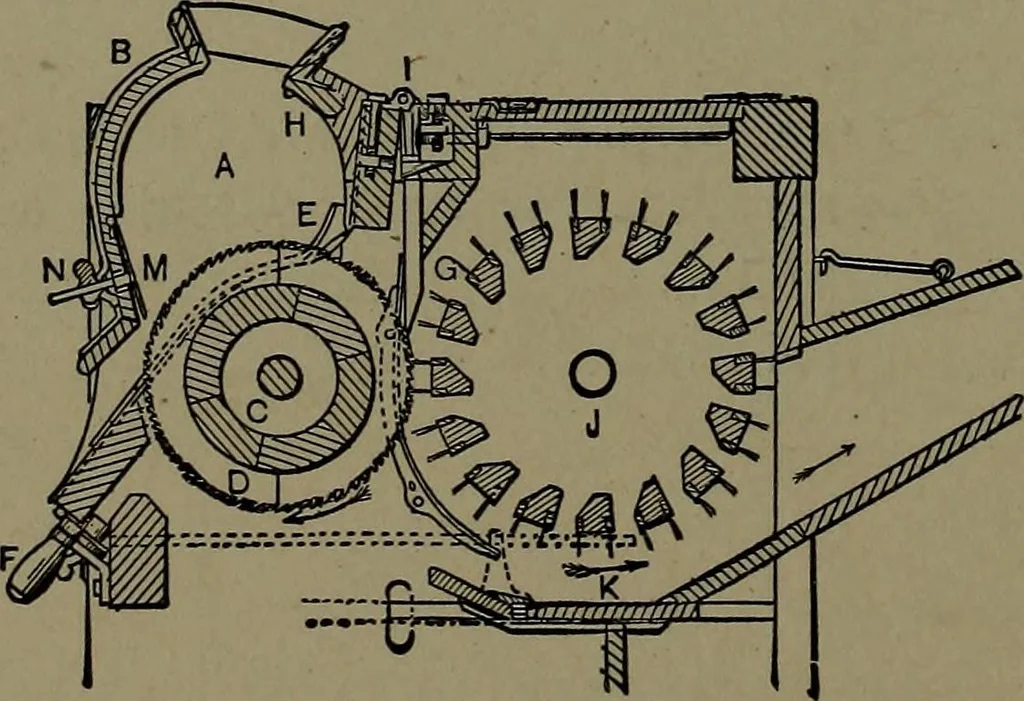

1443a. TRAVELINGDERRICK.—Double trol-leys and lever beam puttinga 75-ton gun on an armor-clad war vessel. … 1443^?. MODERN COT-TON GIN.— D, nest of saws. E, saw grate betweeneach saw to holdback the seed. A, feeder trough andhopper. J, cylinder brush strip-ping the cotton fibrefrom the saw. F, adjusting lever. K, sliding mote board. MIIvI/ AND FACTORY APPLIANCES. 347
