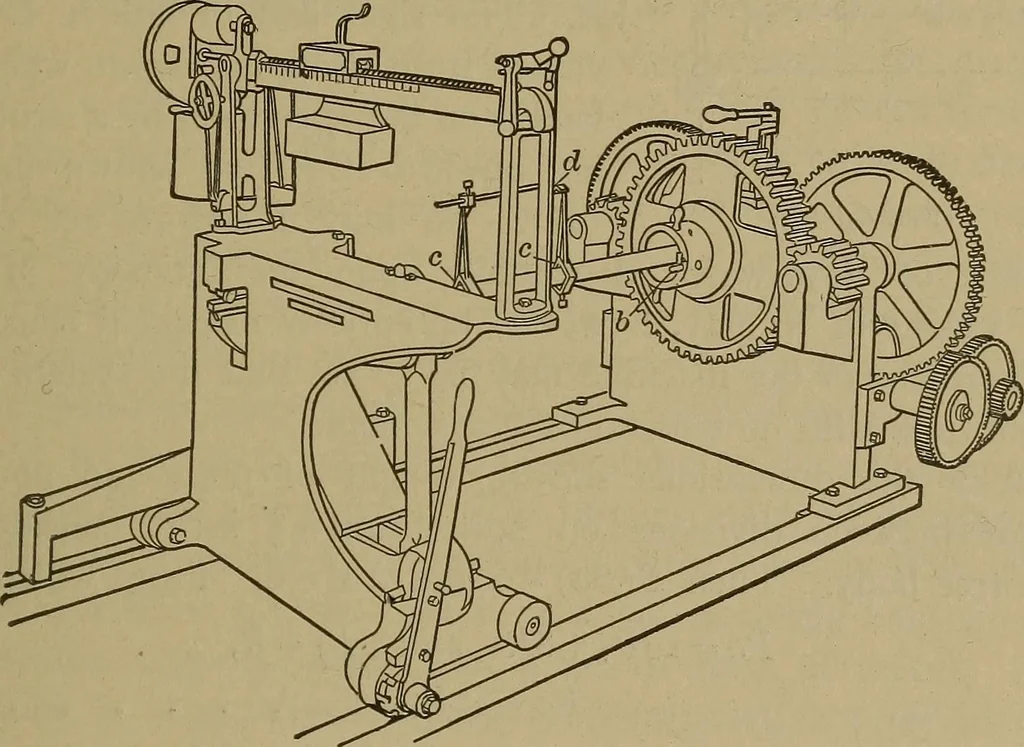

or will result. §7$.]STJ?EJVGr// OF MATERIALS—TESTING-MACHINES. IlSa In the Olsen machine the angle of torsion may be measuredby clamping dogs on the specimen at each end so as to engagethe projections, shown at b, Fig. 63a, of the index-rings, whichare free to move over the graduated scales of the… … Fig. 63c.—Olsen Torsion Machine. which the index-rings are pushed by the dogs. Let a\= anglethrough which movable chuck is rotated, a^ = angle throughwhich index-ring on the movable chuck is pushed by the dog,as = angle through which index-ring on fixed chuck is pushed bythe dog, and a = angle of…
