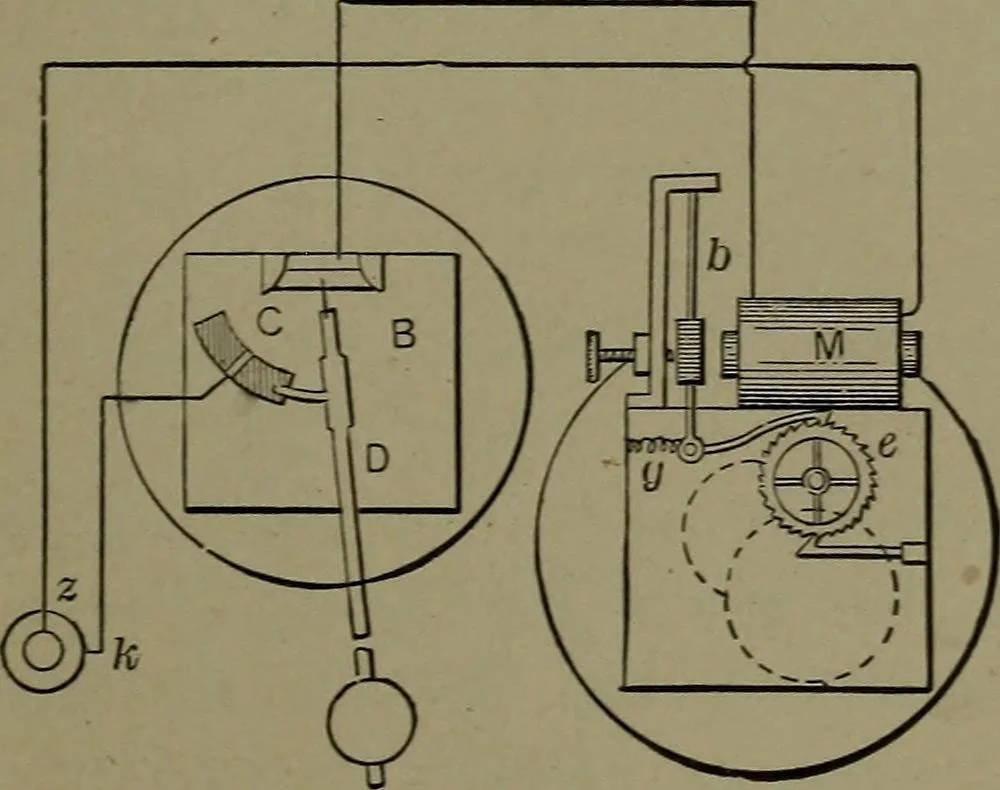

An illustration from Mechanical movements, powers and devices, 1911, leaf 306 — izing the magnet M of a secondary clock. Thisattracts its armature b, operates the pawl which moves forwardand catches one of the teeth of the wheel e. As soon as thecontact is broken at c a spring acting upon the armature b drawsit away from the magnet, and at the same time the pawl moves thewheel… … 296 HOROLOGICAL.
