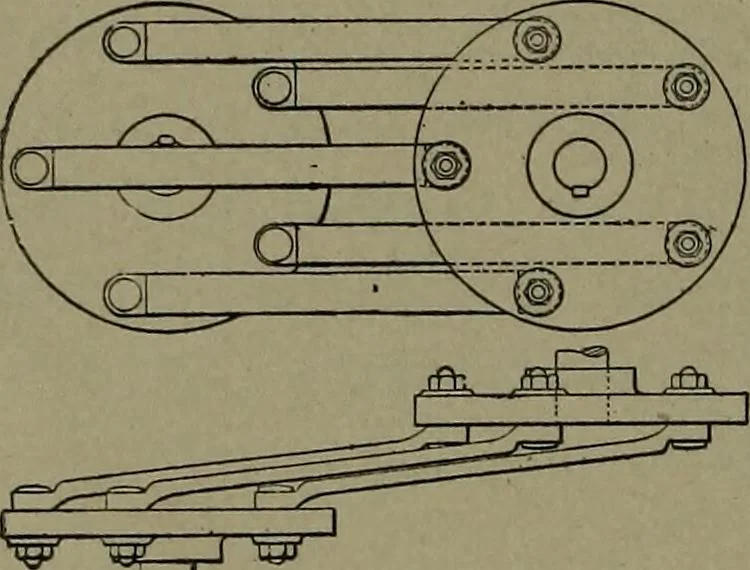

LE SHAFT COUPLING, Hobson and other patents. Right-anglecrank pins revolve and slide in holes in the shaftcouplings. 1300. RIGHT-ANGLE SHAFT COUP- .;!^^^ LING, Hobson patent.—A number ofright-angle steel rods move freely in per-forated guide flanges on the ends of shafts that run atright angles.… … ^^ 1301. ECCENTRIC LINE COUP-LING.—Face plates, fixed to ends ofshafting considerably out of line butparallel, may be connected by four orfive bars with offsets to clear each otherin their revolution on the face plates. 1302. Side view of offset links.
Mechanical movements
