Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 129

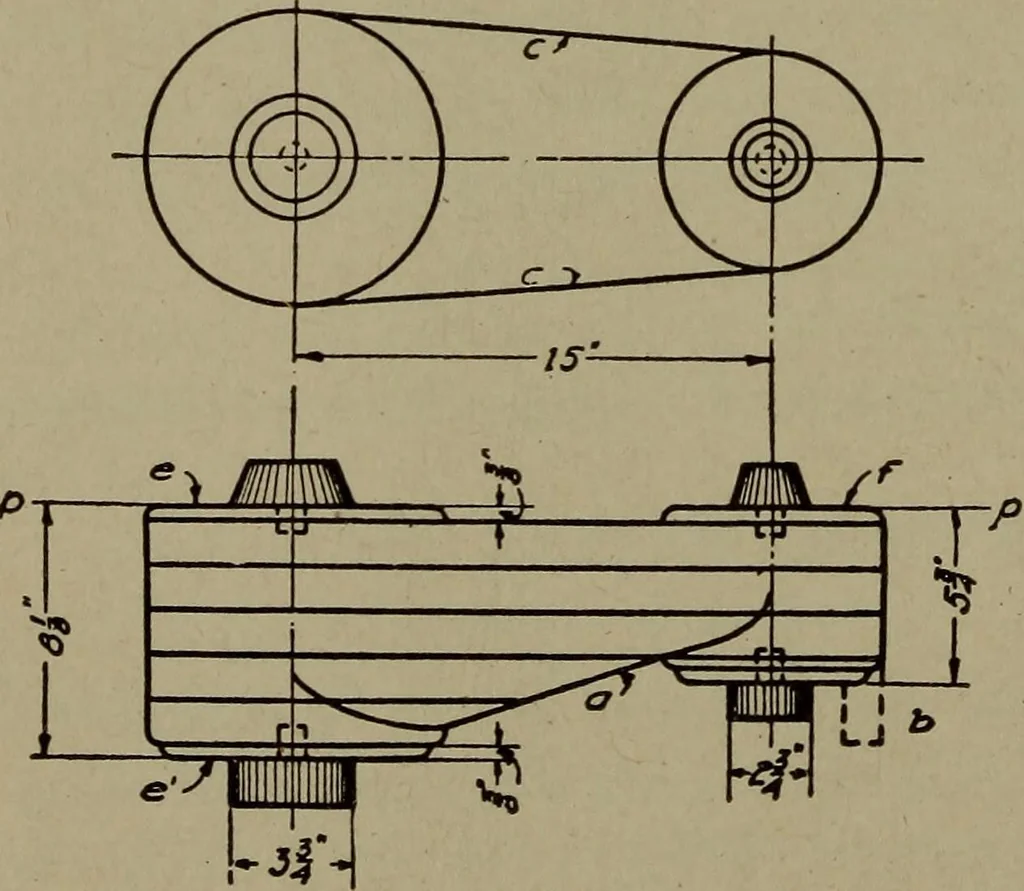

inches andalso 2f inches in diameter,according to the standardadopted for core prints.The bosses e and / are tobe made of flat stock f inch thick. Prepare a wood faceplate witha 1-inch pin at its center. Having a 1-inch hole at the center of … Fig. 193. Diagram of Pattern for Crank, Fig. 192 PATTERN MAKING 113 the boss, fasten the bosses to the faceplate with four |-inch wirenails; now turn them to the diameters required by the drawingand bevel the edge about 30 degrees. Nail and glue on thebosses, being sure the holes are in line with…
Patternmaking
